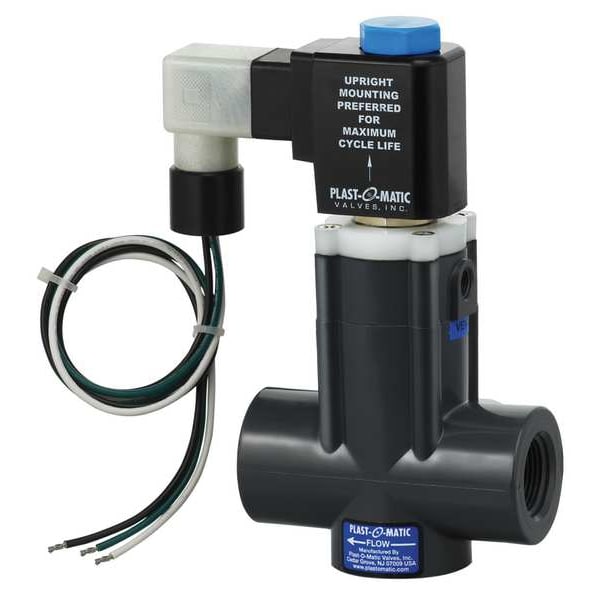

Solenoid Valve, 2-Way, 2-Position, Normally Closed, 1/2 in Pipe Size, 120VAC, Inline Single, Viton
Mfr # EASMT4V12W24-120/60-PP
Zoro # G5104066
Key Features
Specifications
Product Information
- MFR #
- EASMT4V12W24-120/60-PP
- Zoro #
- G5104066
- UPC #
- -
- Country of Origin
- United States
Dimensions
- Nominal Pipe Size
- 1/2 in
- Overall Height
- 6-17/32 in
- Overall Length
- 3-5/16 in
- Overall Width
- 1-1/2 in
- Orifice Diameter
- 3/8 in
- Wire Rope Length
- 3 5/16 in
- Length
- 3 5/16 in
Description
The PLAST-O-MATIC EASMT4V12W24-120/60-PP is a 2-way, 2-position solenoid valve with a normally closed, direct acting design. Fluid compatibility limited to substances compatible with polypropylene body and Viton seals; operating temperature up to 180°F. The valve is compatible with fluid temperatures up to 180°F and operates at a maximum ambient temperature of 122°F. It is intended for indoor and outdoor use with an IP65 and NEMA 4 enclosure rating, allowing for horizontal or vertical mounting orientations. The valve includes a Viton seal and is supplied with the coil and sealing components needed for installation.
Key Features:
- Valve Design: 2-Way/2-Position, Normally Closed, Direct Acting
- Body Material: Polypropylene
- Seal Material: Viton
- Orifice Diameter: 3/8 in
- Nominal Pipe Size: 1/2 in NPT inlet and outlet connections
- Maximum Flow Rate: 3.4 gpm
- Operating Temperatures: Fluid up to 180°F; Ambient up to 122°F
- Electrical: 120 VAC, 60 Hz, 24 W coil with wire lead connections
- Enclosure: Without junction box, watertight coil enclosure; IP65 and NEMA 4 rated
- Mounting Orientation: Horizontal or Vertical
- Includes coil and seals for installation
- Environmental Rating: Indoor and Outdoor use
- Coefficient of Volume (Cv): 2
