Shop PLASTEC

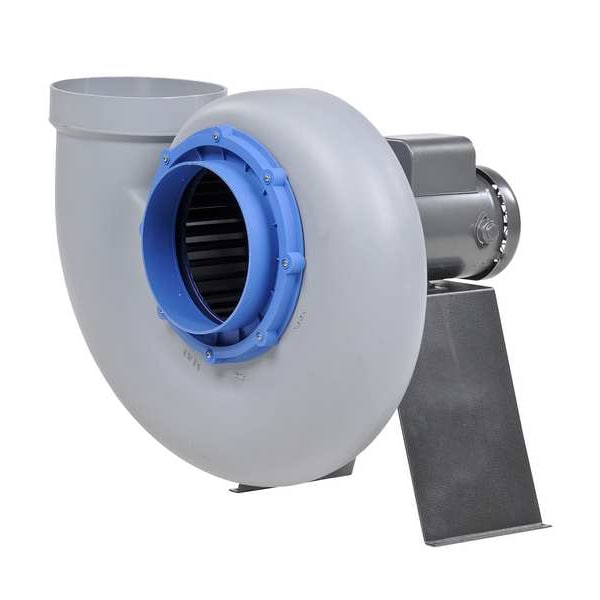

Plastec Blower, Forward Curve, 11 7/8 in

  • Mfr # P30ST4P150
  • Zoro # G400690105
product price:
$
3,093.99
/ea
Additional $40.00 delivery surcharge applies per item.
See details

Key Features

Type
Direct Drive Forward Curve
Wheel Dia. (In.)
11.875 in
Voltage
230V, 460V
Motor HP
1 1/2 hp
Motor Type
General Duty, Three Phase
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
P30ST4P150
Zoro #
G400690105
UPC #
-
Country of Origin
United States

Dimensions

Wheel Dia. (In.)
11.875 in
Width (In.)
22.25 in
Depth (In.)
21.2 in
Inlet Dia. (In.)
10.75 in
Shaft Dia. (In.)
24 mm
Wheel Width (In.)
6.5 in
Height (In.)
36.05 in
Outlet Dia. (In.)
10.75 in
Overall Width
22 1/4 in
Overall Height
36 in
Wheel Diameter
11 7/8 in
Overall Depth
21 3/16 in
Housing Height
36 in
Shaft Diameter
24 mm
Outlet Diameter
10 3/4 in
Housing Width
22 1/4 in
Wheel Width
6 1/2 in
Inlet Diameter
10 3/4 in

Details

Item
Plastec Blower
Type
Direct Drive Forward Curve
Voltage
230V, 460V
Motor HP
1 1/2 hp
Motor Type
General Duty, Three Phase
Full Load Amps
4.26/2.13 A
Housing Finish
Polypropylene
Max. Inlet Temp. (Deg. F)
140 Degrees F
Bearing Type
Sealed, Permanently Lubricated Ball
Rotation
CCW
Housing Material
Plastic
CFM @ 1.500-In. SP
800
Wheel Material
Plastic
Phase
3
Motor RPM
1,725 RPM
CFM @ 1.250-In. SP
800
Includes
Motor Mounting Base
Wheel Type
Forward-Curved
Motor Enclosure
Totally Enclosed Fan Cooled
Max. Ambient Temp. (F)
-13 Degrees F
Blower RPM
1,725 RPM
dBA @ 5 Feet
54 dBA
Motor Frame
90
Agency Compliance
AMCA and CSA certified, UL Listed
Hz
50/60 Hz
Motor Horsepower
1 1/2 hp
Discharge Position
Bottom Horizontal, Down Blast, Top Horizontal, Up Blast
Nameplate Voltage
230/460V AC
Mount Type
Motor Mount
Minimum Fan Speed
1,725 RPM
Assembly
Assembled
Includes Mounting Hardware
Yes
Number of Discharge Positions
2
Airflow @ 1.250 in SP
800 cfm
Sound Level
54 dBA @ 5 ft
Motor Frame Designation
90
For Air Type
Contaminated, Damp, Dirty and Dusty, Emergency Smoke Control, Clean Air, High Temperature
Outlet Shape
Round
Flange Type
Non-Flanged
Airflow @ 1.500 in SP
800 cfm
Maximum Inlet Air Temperature
140 Degrees F
Maximum Static Pressure
3 1/4 in wc
Maximum Fan Speed
1,725 RPM
Current
4.26/2.13 A
Number of Inlets
1
Standards
AMCA Air Performance Certified, CSA Certified, UL Listed
Motor Speed
1,725 RPM
Includes Motor
Yes
Thermal Overload Protection
Yes
Mounting Orientation
Multiposition
Drive Type
Direct Drive
Corrosion Resistant
Yes
Maximum Ambient Temperature
-13 Degrees F
Minimum Ambient Temperature
-40 Degrees F
Frequency
50/60 Hz
Includes Drive Package
Yes
OEM Replacement
No

Description

Plastec Blower, Wheel Type Forward-Curved, Drive Type Direct Drive, Includes Drive Package Yes, Assembly Assembled, Wheel Diameter 11 7/8 in, Airflow @ 1.250 in SP 800 cfm, Airflow @ 1.500 in SP 800 cfm

Restrictions

This item has been restricted from sale in the following states: CA
