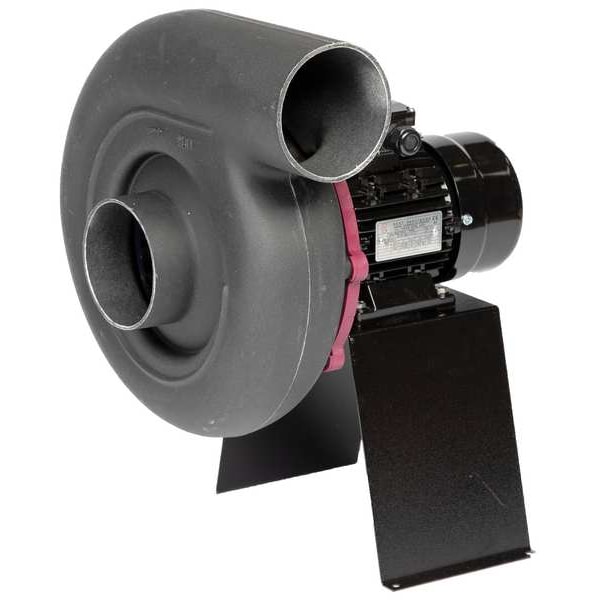

Storm blower, Forward Curve, 9 7/8 in

  • Mfr # S14ST2P150

  • Zoro # G700690102

product price:
$
3,199.99
/ea
Free Shipping & Returns

Key Features

Type
Direct Drive Forward Curve
Wheel Dia. (In.)
9.875 in
Voltage
230/460
Motor HP
1 1/2 hp
Motor Type
General Duty, Three Phase
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
S14ST2P150
Zoro #
G700690102
UPC #
-
Country of Origin
United States

Dimensions

Wheel Dia. (In.)
9.875 in
Wheel Width (In.)
3.38 in
Inlet Dia. (In.)
4.53 in
Outlet Dia. (In.)
4.53 in
Depth (In.)
19.05 in
Shaft Dia. (In.)
19 mm
Height (In.)
25.54 in
Width (In.)
16.53 in
Overall Height
25 1/2 in
Overall Width
16 1/2 in
Wheel Diameter
9 7/8 in
Wheel Width
3 3/8 in
Housing Width
16 1/2 in
Housing Height
25 1/2 in
Outlet Diameter
4 1/2 in
Overall Depth
19 in
Inlet Diameter
4 1/2 in
Shaft Diameter
19 mm

Details

Item
Storm Blower
Type
Direct Drive Forward Curve
Voltage
230/460
Motor HP
1 1/2 hp
Motor Type
General Duty, Three Phase
Motor Frame
71
CFM @ 3.500-In. SP
300
Max. Ambient Temp. (F)
-13 Degrees F
CFM @ 2.500-In. SP
200
CFM @ 2.000-In. SP
175
Housing Finish
Polypropylene
Motor RPM
3,450 RPM
Rotation
CCW
CFM @ 3.000-In. SP
250
Blower RPM
3,450 RPM
CFM @ 4.000-In. SP
300
Full Load Amps
4.10/2.05 A
Bearing Type
Sealed, Permanently Lubricated Ball
Wheel Material
Plastic
Wheel Type
Forward-Curved
Motor Enclosure
Totally Enclosed Fan Cooled
Agency Compliance
AMCA and CSA certified, UL Listed
Includes
Motor Mounting Base
Housing Material
Plastic
Max. Inlet Temp. (Deg. F)
140 Degrees F
Phase
3
CFM @ 1.500-In. SP
100
Hz
50/60 Hz
dBA @ 5 Feet
82 dBA
Number of Discharge Positions
2
Frequency
50/60 Hz
Discharge Position
Bottom Horizontal, Down Blast, Top Horizontal, Up Blast
Airflow @ 1.500 in SP
100 cfm
Includes Mounting Hardware
Yes
Airflow @ 4.000 in SP
300 cfm
Maximum Inlet Air Temperature
140 Degrees F
Motor Horsepower
1 1/2 hp
Maximum Ambient Temperature
-13 Degrees F
Airflow @ 2.500 in SP
200 cfm
For Air Type
Contaminated, Damp, Dirty and Dusty, Emergency Smoke Control, Clean Air, High Temperature
Standards
AMCA Air Performance Certified, CSA Certified, UL Listed
Motor Frame Designation
71
Flange Type
Non-Flanged
Maximum Static Pressure
8 1/4 in wc
Mount Type
Motor Mount
Airflow @ 3.000 in SP
250 cfm
Minimum Fan Speed
3,450 RPM
Minimum Ambient Temperature
-40 Degrees F
Mounting Orientation
Multiposition
Outlet Shape
Round
Includes Motor
Yes
Number of Inlets
1
Nameplate Voltage
230/460V AC
Corrosion Resistant
Yes
Sound Level
82 dBA @ 5 ft
Includes Drive Package
Yes
Drive Type
Direct Drive
Airflow @ 3.500 in SP
300 cfm
Motor Speed
3,450 RPM
Airflow @ 2.000 in SP
175 cfm
Maximum Fan Speed
3,450 RPM
Current
4.10/2.05 A
Assembly
Assembled
Thermal Overload Protection
Yes
OEM Replacement
No

Description

Storm Blower, Wheel Type Forward-Curved, Drive Type Direct Drive, Includes Drive Package Yes, Assembly Assembled, Wheel Diameter 9 7/8 in, Airflow @ 1.500 in SP 100 cfm, Airflow @ 2.000 in SP 175 cfm, Airflow @ 2.500 in SP 200 cfm, Airflow @ 3.000 in SP 250 cfm, Airflow @ 3.500 in SP 300 cfm, Airflow @ 4.000 in SP 300 cfm

Restrictions

This item has been restricted from sale in the following states: CA
