Pneumadyne

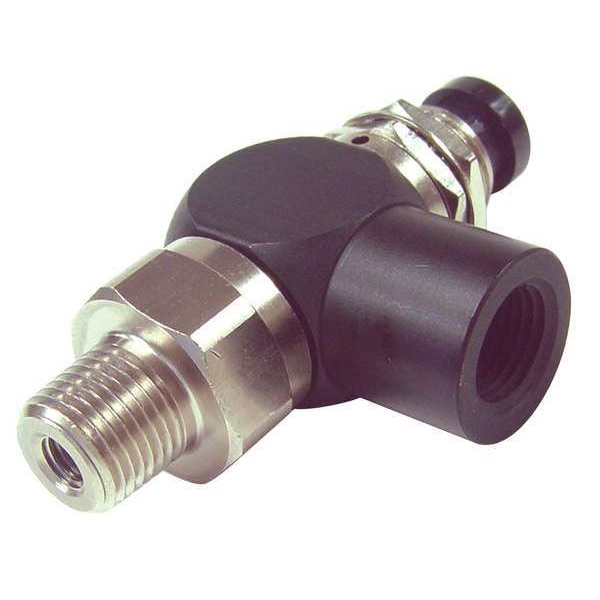

Control Valve, 3-Way, 1/8 In FNPT

product price: $36.99
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Pipe Size 1/8"
  • Valve Ways and Positions 3-Way/2-Position
  • Valve Port Size 1/8 in
  • Max. Pressure 125 psi
  • Connection NPT
See all product information

Product Information

Dimensions

Pipe Size 1/8"
Valve Port Size 1/8 in
Overall Length 2 3/64 in
Overall Width 5/8 in
Overall Height 1 9/64 in

Details

Item Manual Air Control Valve
Valve Ways and Positions 3-Way/2-Position
Max. Pressure 125 psi
Connection NPT
Body Material Aluminum
Valve Actuator / Return Button / Spring
Max. CFM - Valves 22.1
Valve Max. Pressure Rating 125 psi
Valve Temp. Range -20 Degrees to 160 Degrees F
Coefficient of Volume 0.3
CFM 22.1
Actuator/Return Button/Spring
Center Position Closed
Series 11
Air Valve Type 3-Way, 2-Position
Normally Open / Normally Closed Normally Closed
Temp. Range -20 Degrees to 160 Degrees F

Description

Manual Air Control Valve, Valve Ways and Positions 3-Way/2-Position, Valve Port Size 1/8 in, Connection NPT, Valve Actuator / Return Button / Spring, Max. CFM - Valves 22.1 cfm, Valve Max. Pressure Rating 125 psi, Valve Temp. Range -20 Degrees to 160 Degrees F, Center Position Closed, Normally Open / Normally Closed Normally Closed, Coefficient of Volume 0.3, Body Material Aluminum, Overall Length 2 1/16 in, Overall Height 1 1/8 in, Overall Width 5/8 in, Series 11, Manual Air Control Valve
