  11. Toggle Valve, 3 Way, NC, 1/8 In, NPT

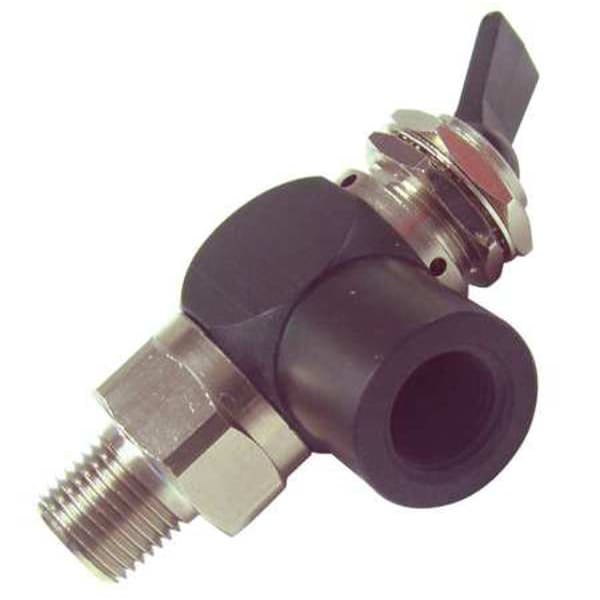

Pneumadyne Toggle Valve, 3 Way, NC, 1/8 In, NPT H11-30-14 - main

Toggle Valve, 3 Way, NC, 1/8 In, NPT

  • Mfr # H11-30-14

  • Zoro # G4265807

product price: $47.19
/ea

Key Features

Center Position
Closed
Coefficient of Volume
0.29
Number of Ways
Three-Way
Series
11
Overall Length
2 3/8 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
H11-30-14
Zoro #
G4265807
UPC #
-
Country of Origin
United States

Dimensions

Overall Length
2 3/8 in
Overall Width
1 1/8 in
Pipe Size
1/8"
Valve Port Connection Size
1/8 in x 10-32

Details

Item
Manual Air Control Valve
Center Position
Closed
Coefficient of Volume
0.29
Number of Ways
Three-Way
Series
11
Connection Type
NPT x FNPT
Valve Design
3-Way
Handle Type
Detented Toggle
CFM @ 75 PSI
22.1 cfm
Valve Configuration
Normally Closed
Seat Material
Buna-N
Seal Material
Buna-N
Max. Pressure
125 psi
Stem Material
brass
Temp. Range
-20 Degrees to 160 Degrees F
Body Material
Aluminum, Brass
Flow Rate - Maximum
22.1 scfm
Product Type
Manual Air Control Valve
Actuator Type
Toggle
Operating Temperature - Maximum
160 Degrees F
Operating Pressure - Maximum
125 psi
Valve Port Connection Gender
Female
Valve Port Connection Type
NPT
Vacuum Rating
Vacuum Operable
Exhaust Port Connection Type
Unthreaded
Operating Temperature - Minimum
-20 Degrees F
Exhaust Time
0.05 sec
Actuation Force @ 125 psi
0.88 lb
Return Action
Detent
Coefficient of Volume (Cv)
0.29
Force @ 50 psi
8 oz
Valve Action
Normally Closed
Fill Time
0.01 sec
Operating Pressure - Minimum
12.7 psi

Description

Manual Air Control Valve, Connection MNPT x FNPT, Center Position Closed, Coefficient of Volume 0.29, Body Material Aluminum, Brass, Overall Length 2 3/8 in, Overall Width 1 1/8 in, Series 11
