  11. Toggle Valve, NC, 1/8 In, NPT

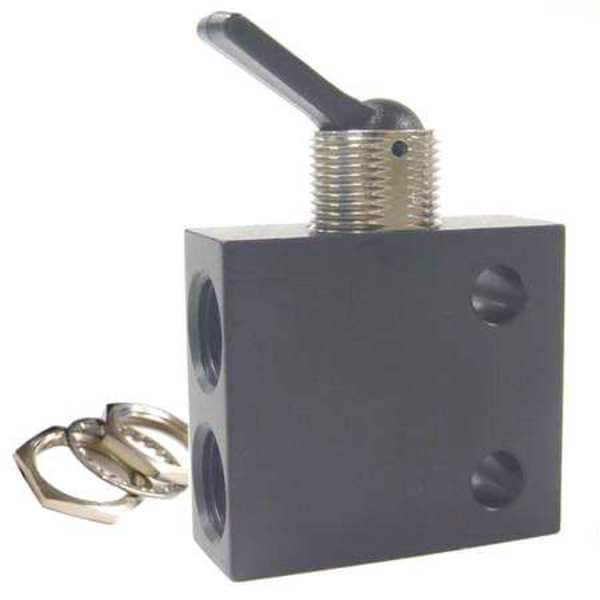

Pneumadyne Toggle Valve, NC, 1/8 In, NPT C040401 - main

Toggle Valve, NC, 1/8 In, NPT

  • Mfr # C040401

  • Zoro # G4273132

product price: $39.25
/ea

Key Features

Center Position
Exhaust
Coefficient of Volume
0.42
Series
400
Number of Ways
Three-Way
Overall Height
1 1/4 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
C040401
Zoro #
G4273132
UPC #
-
Country of Origin
United States

Dimensions

Overall Height
1 1/4 in
Overall Length
2 1/8 in
Overall Width
1 1/4 in
Pipe Size
1/8"
Exhaust Port Connection Size
1/8 in
Valve Port Connection Size
1/8 in

Details

Item
Manual Air Control Valve
Center Position
Exhaust
Coefficient of Volume
0.42
Series
400
Number of Ways
Three-Way
Connection Type
FNPT
Valve Design
3-Way
Max. Pressure
125 psi
Handle Type
Detented Toggle
Valve Configuration
Normally Closed
Seat Material
Buna-N
Body Material
Aluminum
CFM @ 75 PSI
33 cfm
Temp. Range
-20 Degrees to 160 Degrees F
Stem Material
brass
Seal Material
Buna-N
Application
Cleanroom
Vacuum Rating
Vacuum Operable
Exhaust Time
0.03 sec
Operating Pressure - Minimum
12.7 psi
Exhaust Port Connection Type
Threaded
Exhaust Port Connection Gender
Female
Flow Rate - Maximum
33 scfm
Actuation Force @ 125 psi
1.19 lb
Operating Temperature - Maximum
160 Degrees F
Force @ 50 psi
13 oz
Operating Pressure - Maximum
125 psi
Return Action
Detent
Valve Action
Normally Closed
Operating Temperature - Minimum
-20 Degrees F
Valve Port Connection Gender
Female
Valve Port Connection Type
NPT
Coefficient of Volume (Cv)
0.42
For Media
Lubricated Air
Product Type
Manual Air Control Valve
Actuator Type
Toggle
Fill Time
0.01 sec

Description

Manual Air Control Valve, Connection NPT, Center Position Exhaust, Coefficient of Volume 0.42, Body Material Aluminum, Overall Length 2 1/8 in, Overall Height 1 1/4 in, Overall Width 1 1/4 in, Series 400
