Shop All Mechanical Lugs
Polaris

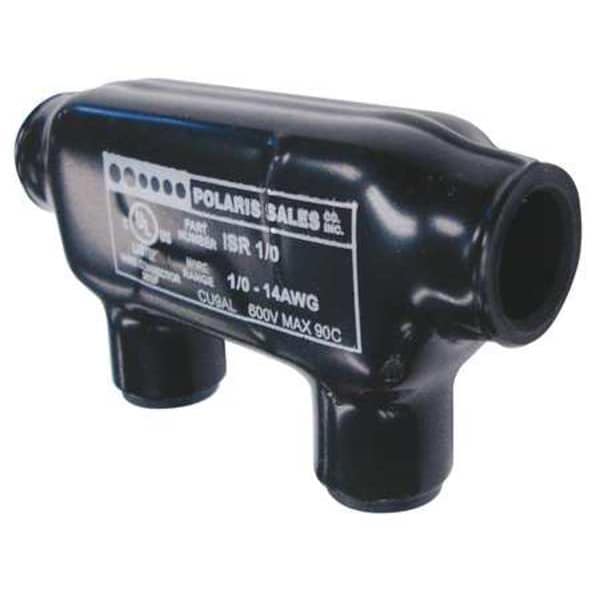

Insulated Multitap Connector, 3.25 In. L

product price: $26.49
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Connector Type In Line
  • No. of Ports 2
  • Min. Conductor Size 14 AWG
  • Max. Conductor Size 1/0 AWG
  • Stud Size 3/16 in
See all product information

Product Information

Dimensions

Min. Conductor Size 14 AWG
Max. Conductor Size 1/0 AWG
Stud Size 3/16 in
Length 3.25 in
Width 0.9 in
Length (Straight Wireway) 3.25 in
Overall Length 3.25 in
Hex Size 3/16 in
For Stranded Copper Wire Size - Maximum 1/0 AWG
For Stranded Copper Wire Size - Minimum 14 AWG
Overall Width 0.9 in
Strip Length 1 1/16 in
For Wire Size 1 AWG, 1/0 AWG, 10 AWG, 12 AWG, 14 AWG, 2 AWG, 4 AWG, 6 AWG, 8 AWG
Conductor Al Size Range 1/0 AWG – 12 AWG
Hex Wrench Size 3/16
Conductor Cu Size Range 1/0 AWG – 14 AWG

Details

Item Insulated Multitap Connector
Connector Type In Line
No. of Ports 2
Insulation Material Plastisol
Direct Burial Rated No
Standards cULus, UL 486A
Screw Material Aluminum
Head Style Hex
Body Material Aluminum
Max. Voltage 600V AC/DC
Compatible with Product Type Copper and Aluminum Cables
RoHS Compliant Yes
Number of Ports 2
Minimum Operating Temperature -49 Degrees F
Finish Plastisol
Special Features Abrasion and Chemical Resistant, UV Resistant, Will Not Support Combustion
Color Black
Maximum Operating Temperature 194 Degrees F
Maximum Voltage 600 V
Tap Shape T
For Conductor Material Aluminum, Copper
Torque 180 in-lb
Assortment Black UV Coated Pre-Insulated Connectors
Conductors Count 2
Al Conductor Max Amp 135
Max Torque 80
Application Splice
Ul File No E186991
Certifications cULus
Env Temp Cold Temperature rated to -45C
Conductor Type Copper, Aluminum
Ul Standard UL 486A/B
Cu Conductor Max Amp 170
Temp Rating 90C, AL9CU
Wire Cable Class Class B, Class C

Description

Insulated Multitap Connector, Body Material Aluminum, Color Black, Finish Plastisol, For Conductor Material Aluminum, Copper, For Stranded Copper Wire Size - Minimum 14 AWG, For Stranded Copper Wire Size - Maximum 1/0 AWG, Head Style Hex, Hex Size 3/16 in, Insulation Material Plastisol, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 600 V, Number of Ports 2, RoHS Compliant Yes, Standards cULus, UL 486A, Compatible with Product Type Copper and Aluminum Cables, Connector Type In Line
