  10. /
  11. Insulated Multitap Connector, 3.80 In. L
Shop All Mechanical Lugs
Polaris

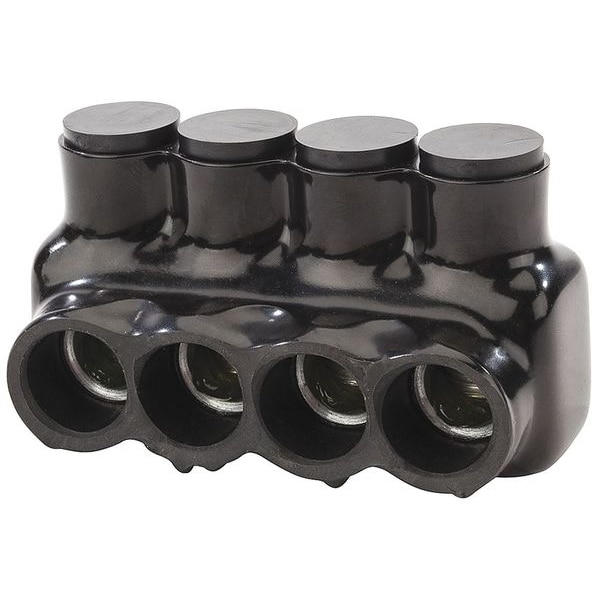

Insulated Multitap Connector, 3.80 In. L

product price: $40.95
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Connector Type Single-Sided Entry
  • No. of Ports 4
  • Min. Conductor Size 6 AWG
  • Max. Conductor Size 250 kcmil
  • Insulation Material Plastisol
See all product information

Product Information

Dimensions

Min. Conductor Size 6 AWG
Max. Conductor Size 250 kcmil
Stud Size 5/16 in
Length 3.8 in
Width 2.03 in
Length (Straight Wireway) 3.8 in
Hex Size 5/16 in
Strip Length 1 3/8 in
For Wire Size 1 AWG, 1/0 AWG, 2 AWG, 2/0 AWG, 250 kcmil, 3/0 AWG, 4 AWG, 4/0 AWG, 6 AWG
Overall Width 2.03 in
Overall Length 3.8 in
For Stranded Copper Wire Size - Minimum 6 AWG
For Stranded Copper Wire Size - Maximum 250 kcmil
Wire Size 250 MCM-6 AWG
Dimensions L=3.8 - W=2.03 - H=2.18
Hex Wrench Size 5/16

Details

Item Insulated Multitap Connector
Connector Type Single-Sided Entry
No. of Ports 4
Insulation Material Plastisol
Material Plastisol
Body Material Aluminum
Screw Material Aluminum
Standards cULus, UL 486B
Max. Voltage 600V AC/DC
Head Style Hex
Direct Burial Rated No
Number of Ports 4
Finish Plastisol
Color Black
For Conductor Material Aluminum, Copper
Torque 360 in-lb
Maximum Operating Temperature 194 Degrees F
Maximum Voltage 600 V
Compatible with Product Type Copper and Aluminum Cables
RoHS Compliant Yes
Special Features Abrasion and Chemical Resistant, Eliminates the Need for Cover and Taping, Insulated With High-Dielectric Strength Plastisol, Molded for Precise Fit and Supplied With Removable Access Plugs Over the Hex Screws, UV Resistant, Will Not Support Combustion, Wire Entry Ports on One Side Only
Tap Shape L
Minimum Operating Temperature -49 Degrees F
Type Single-Sided Entry
Standard cULus
Temperature Rating 90° C
Voltage Rating 600 V
Application Wire Termination
Environmental Conditions 90 C
Wire Type Class B & C
Number Of Conductors 4
Al Conductor Max Amp 410
Conductor Type Copper, Aluminum
Wire Cable Class Class B, Class C
Ul Standard UL 486A/B
Temp Rating 90C, AL9CU
Assortment Black UV Coated Pre-Insulated Connectors
Conductors Count 4
Cu Conductor Max Amp 527
Ul File No E186991
Env Temp Cold Temperature rated to -45C
Max Torque 360

Description

Insulated Multitap Connector, Body Material Aluminum, Color Black, Finish Plastisol, For Conductor Material Aluminum, Copper, For Stranded Copper Wire Size - Minimum 6 AWG, For Stranded Copper Wire Size - Maximum 250 kcmil, Head Style Hex, Hex Size 5/16 in, Insulation Material Plastisol, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 600 V, Number of Ports 4, RoHS Compliant Yes, Standards cULus, UL 486B, Compatible with Product Type Copper and Aluminum Cables
