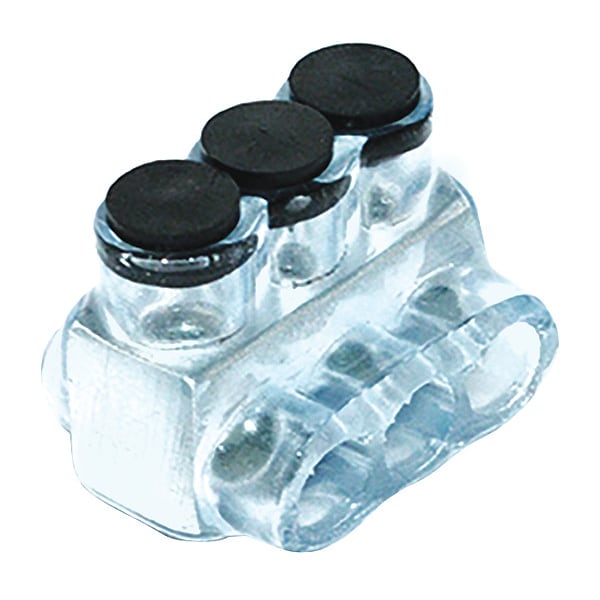

Polaris Multi-Tap Connector, 3 Port
Mfr # IPL4-3CB
Zoro # G5805048
product price: $32.39
/eaKey Features
Connector Type
Single-Sided Entry
For Wire Size
4 AWG
Number of Ports
3
For Conductor Material
Aluminum, Copper
Body Material
Aluminum
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
IPL4-3CB
Zoro #
G5805048
UPC #
662381368843
Country of Origin
United States
Dimensions
For Wire Size
4 AWG
Hex Size
1/8 in
Length
1.54 in
Height
1.4 in
Max. Single Wire Size
4 AWG
Overall Length
1.55 in
Width
1.12 in
Min. Single Wire Size
12 AWG
Min. Conductor Size
14 AWG
Stud Size
1/8 in
Max. Conductor Size
4 AWG
Length (Straight Wireway)
1.54 in
Overall Width
1.18 in
Strip Length
11/16 in
For Stranded Copper Wire Size - Minimum
14 AWG
For Stranded Copper Wire Size - Maximum
4 AWG
Conductor Al Size Range
4-12 AWG
Hex Wrench Size
1/8
Conductor Cu Size Range
4-14 AWG
Minimum Run Wire Size
14 AWG
For Minimum Wire Size - Stranded
14 AWG
For Maximum Wire Size - Stranded
4 AWG
Minimum Single Wire Size
12 AWG
Maximum Tap Wire Size
4 AWG
Maximum Run Wire Size
4 AWG
Maximum Single Wire Size
4 AWG
Maximum Wire Size
4 AWG
Minimum Wire Size
14 AWG
Description
Multitap Connector, Body Material Aluminum, Color Clear, Finish Plastisol, For Conductor Material Aluminum, Copper, For Stranded Copper Wire Size - Minimum 14 AWG, For Stranded Copper Wire Size - Maximum 4 AWG, Head Style Hex, Hex Size 1/8 in, Insulation Material Plastisol, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 600 V, Number of Ports 3, UL 94 Flammability Rating Not Applicable, RoHS Compliant Yes, Standards cULus, UL 486A, UL 486B
