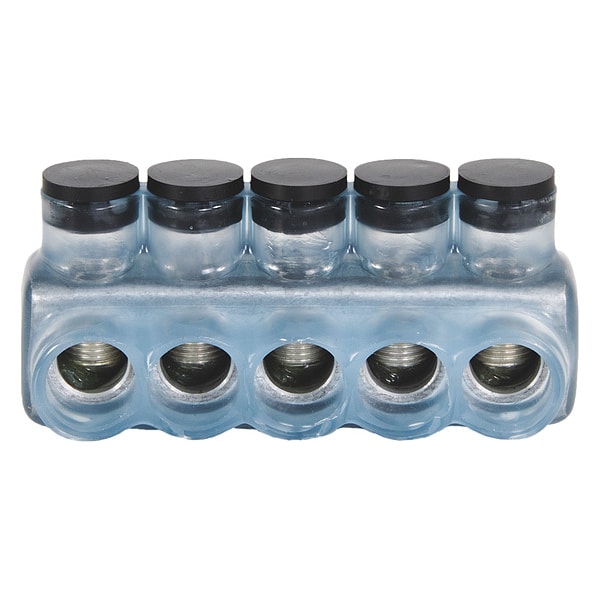

Polaris Multi-Tap Connector, 5 Port
Mfr # IPLD250-5CB
Zoro # G5805224
product price: $70.19
/eaKey Features
Connector Type
Double-Sided Entry
For Wire Size
250 kcmil
Number of Ports
5
For Conductor Material
Aluminum, Copper
Body Material
Aluminum
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
IPLD250-5CB
Zoro #
G5805224
UPC #
662381368881
Country of Origin
United States
Dimensions
For Wire Size
250 kcmil
Hex Size
5/16 in
Max. Single Wire Size
250 kcmil
Overall Length
4.66 in
Min. Single Wire Size
6 AWG
Length
4.71 in
Height
2.35 in
Width
2.31 in
Max. Conductor Size
250 kcmil
Stud Size
5/16 in
Min. Conductor Size
6 AWG
Length (Straight Wireway)
4.71 in
Overall Width
2.28 in
For Stranded Copper Wire Size - Maximum
250 kcmil
For Stranded Copper Wire Size - Minimum
6 AWG
Strip Length
1 3/8 in
Hex Wrench Size
5/16
Conductor Al Size Range
250 MCM-6 AWG
Conductor Cu Size Range
250 MCM-6 AWG
For Minimum Wire Size - Stranded
6 AWG
For Minimum Wire Size - Solid
6 AWG
Minimum Wire Size
6 AWG
Maximum Single Wire Size
250 kcmil
Maximum Run Wire Size
250 kcmil
Minimum Single Wire Size
6 AWG
Minimum Run Wire Size
6 AWG
Maximum Wire Size
250 kcmil
Description
Multitap Connector, Body Material Aluminum, Color Clear, Finish Plastisol, For Conductor Material Aluminum, Copper, For Stranded Copper Wire Size - Minimum 6 AWG, For Stranded Copper Wire Size - Maximum 250 kcmil, Head Style Hex, Hex Size 5/16 in, Insulation Material Plastisol, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 600 V, Number of Ports 5, UL 94 Flammability Rating Not Applicable, RoHS Compliant Yes, Standards cULus, UL 486A, UL 486B
