  11. Polaris Multi-Tap Connector, Insulated

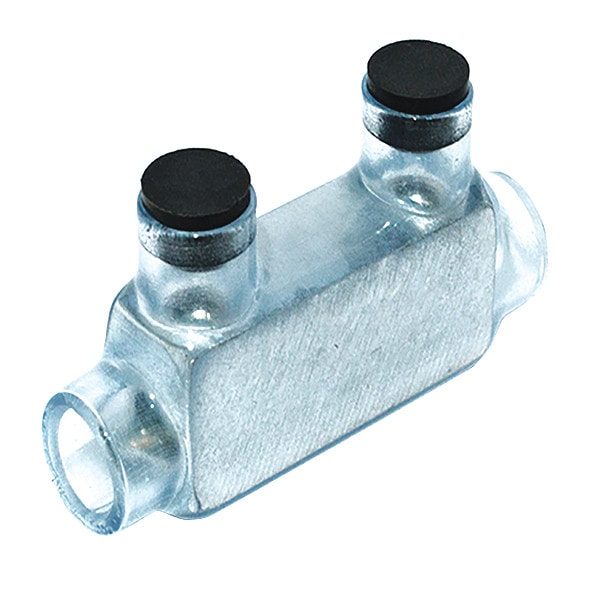

Polaris Polaris Multi-Tap Connector, Insulated ISR-1/0CB - main

Polaris Multi-Tap Connector, Insulated

  • Mfr # ISR-1/0CB

  • Zoro # G5805416

product price: $40.14
/ea

Key Features

Connector Type
In Line
For Wire Size
1/0 AWG
Number of Ports
2
For Conductor Material
Aluminum, Copper
Body Material
Aluminum
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ISR-1/0CB
Zoro #
G5805416
UPC #
662381369048
Country of Origin
United States

Dimensions

For Wire Size
1/0 AWG
Hex Size
3/16 in
Overall Length
3.25 in
Width
0.9 in
Length
3.25 in
Max. Conductor Size
1/0 AWG
Stud Size
3/16 in
Min. Conductor Size
14 AWG
Length (Straight Wireway)
3.25 in
For Stranded Copper Wire Size - Minimum
14 AWG
For Stranded Copper Wire Size - Maximum
1/0 AWG
Strip Length
1 1/16 in
Overall Width
0.9 in
Conductor Cu Size Range
1/0 AWG – 14 AWG
Conductor Al Size Range
1/0 AWG – 12 AWG
Hex Wrench Size
3/16
Minimum Single Wire Size
14 AWG
Minimum Wire Size
14 AWG
For Minimum Wire Size - Solid
14 AWG
For Minimum Wire Size - Stranded
14 AWG
Maximum Single Wire Size
1/0 AWG
Maximum Wire Size
1/0 AWG

Details

Item
Insulated Multitap Connector
Connector Type
In Line
Number of Ports
2
For Conductor Material
Aluminum, Copper
Body Material
Aluminum
Insulation Material
Plastisol
Direct Burial Rated
No
Torque
180 in-lb
Head Style
Hex
Finish
Plastisol
Color
Clear
Maximum Operating Temperature
194 Degrees F
Standards
cULus, UL 486A
Application
Splice
Max. Voltage
600V AC/DC
Type
In Line
No. of Ports
2
Screw Material
Steel
Special Features
Clear Design Allows for Optimal Conductor Placement and a More Secure Connection, Pre-Filled With Oxide Inhibitor to Prevent Corrosion and Provide a Low-Contact Resistance Connection, Removable Plugs Ensure Secure Entry Port Closure While Preventing Debris From Entering Connector, Smooth Exterior Finish and Rounded Corners Provide a More Comfortable Grip for Maximum Torque
RoHS Compliant
Yes
Compatible with Product Type
Copper and Aluminum Conductors
Maximum Voltage
600 V
Minimum Operating Temperature
-49 Degrees F
Assortment
Clear Coated Pre-Insulated Connectors
Conductor Type
Copper, Aluminum
Temp Rating
90C, AL9CU
Cu Conductor Max Amp
170
Al Conductor Max Amp
135
Conductors Count
2
Ul Standard
UL 486A/B
Wire Cable Class
Class B, Class C
Ul File No
E186991
Max Torque
80
Env Temp
Cold Temperature rated to -45C
Certifications
cULus
Maximum Conductors
2

Description

Multitap Connector, Body Material Aluminum, Color Clear, Finish Plastisol, For Conductor Material Aluminum, Copper, For Stranded Copper Wire Size - Minimum 14 AWG, For Stranded Copper Wire Size - Maximum 1/0 AWG, Head Style Hex, Hex Size 3/16 in, Insulation Material Plastisol, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 600 V, Number of Ports 2, UL 94 Flammability Rating Not Applicable, RoHS Compliant Yes, Standards cULus, UL 486A
