Shop POMONA ELECTRONICS

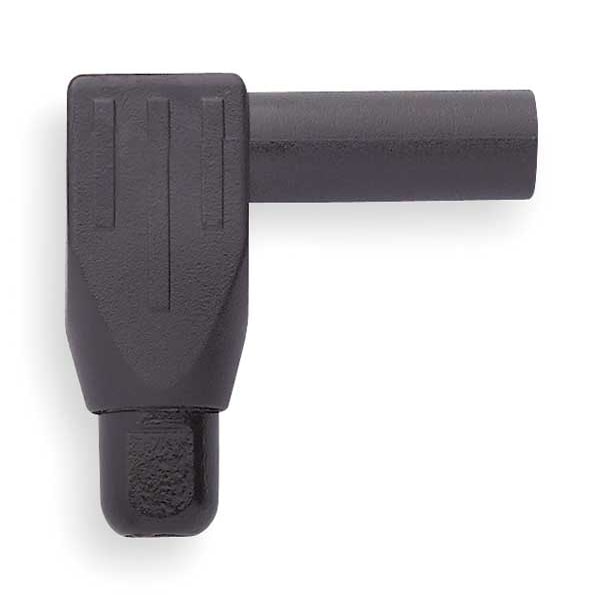

4mm Right Angle Banana Plug, CAT III 1000V, 1.28", Black

  • Mfr # 6729-0

  • Zoro # G1514737

product price:
$
9.45
/ea

Key Features

Instrument Safety Rating
CAT III 1000V
Length
1.28"
Color
Black
Max Amps
20A
Temperature Range
14 Degrees to 176 Degrees F
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
6729-0
Zoro #
G1514737
UPC #
095969269308
Country of Origin
United Kingdom

Dimensions

Length
1.28"
Wire Size
18 AWG
Manufacturers Warranty Length
1 yr
Contact Diameter
4 mm

Details

Item
4mm Right Angle Banana Plug
Instrument Safety Rating
CAT III 1000V
Color
Black
Max Amps
20A
Temperature Range
14 Degrees to 176 Degrees F
Features
Material: Contacts: Nickel-Plated Brass, Insulation: Lucel Acetal Polymer, Rating: IEC61010 1000V Category III
Body Material
Beryllium Copper
Contact Material - Test Lead Connector
Beryllium Copper
Item - Test Lead Connector
Right Angle Banana Plug
Contact Material
Brass
Contact Finish - Test Lead Connector
Nickel Plated
Max. Amps
20 A
Hand Held Voltage
1000V AC/V DC
Safety Rating
Cat III 1000V
Insulating Material
Acetal Polymer
Max. Amps - Test Lead Connector
20
Contact Finish
Unfinished
Operating Temp.
14 to 131 Degrees F
Insulating Material - Test Lead Connector
Acetal Polymer
Color - Test Lead Connector
Black
Body Material - Test Lead Connector
Brass
Hands Free Voltage
1000V AC/V DC
Standards
IEC 61010-2-031
Maximum Voltage
1,000 V
Insulation Material
Lucel
Minimum Operating Temperature
14 Degrees F
Maximum Current
20 A
Maximum Operating Temperature
131 Degrees F
Meter Connection Type
Banana Plug
Body Finish
Nickel Plated
For Wire Gauge - Maximum
18 AWG
CAT Safety Rating
CAT III 1000V

Description

Right Angle Banana Plug, Contact Finish Nickel Plated, Contact Material Brass, Maximum Current 20 A, Color Black, Body Material Nickel Plated Beryllium Copper, Maximum Voltage 1,000 V, Instrument Safety Rating CAT III 1000V, Length 1 1/4 in, Features Fits DMM with Safety-Style Banana Jacks, Fits Standard Banana Safety-Style Jacks, Simple Assembly, Maximum Operating Temperature 131 Degrees F, Wire Size 18 AWG, Standards IEC 61010-2-031, Maximum Temperature Measurement Not Applicable
