  9. Precision Electronic Test Probe Set, CAT II 1000V, Precision Electronic Test Probe and Lead Set

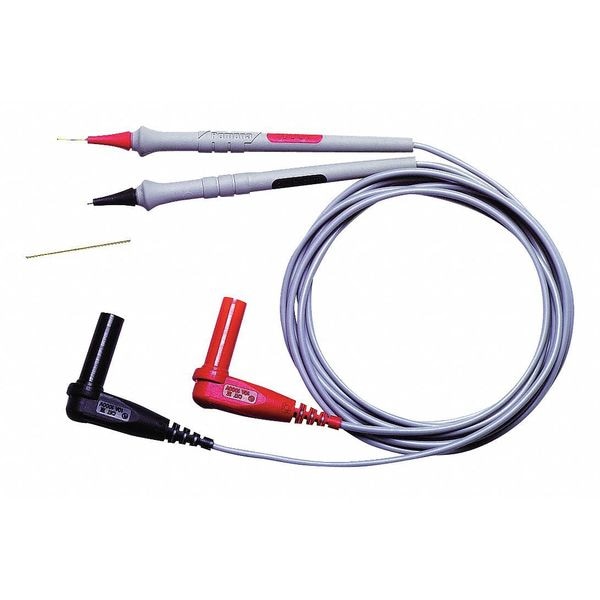

Pomona Electronics Precision Electronic Test Probe Set, CAT II 1000V, Precision Electronic Test Probe and Lead Set 6275 - main

Precision Electronic Test Probe Set, CAT II 1000V, Precision Electronic Test Probe and Lead Set

  • Mfr # 6275

  • Zoro # G7592252

product price: $40.99
/pr

Key Features

Instrument Safety Rating
CAT II 1000V
Plug and Connector Description
Precision Electronic Test Probe and Lead Set
Length
3 ft. 3"
Color
Black, Red
Max Amps
3A
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
6275
Zoro #
G7592252
UPC #
095969157896
Country of Origin
United States

Dimensions

Length
3 ft. 3"
Length - Test Lead
3 ft 3 in
Manufacturers Warranty Length
90 day
Wire Size
20 AWG

Details

Item
Precision Electronic Test Probe Set
Instrument Safety Rating
CAT II 1000V
Plug and Connector Description
Precision Electronic Test Probe and Lead Set
Color
Black, Red
Max Amps
3A
Application
Electronic Applications
Includes
(2) Sharp Point Gold Plated Pogo Pin Tip; (2) Sharp Point Stainless Steel Tip; (2) Triple Point Gold Plated Pogo Pin Tip; (2) Quad Point Gold Plated Pogo Pin Tip; (2) Long Sharp Point Stainless Steel Tip
Features
Miniature Probe is the Perfect Size For Probing Tiny, High-Density Circuits, Gold Plated Pogo Pin Tip Keeps Constant Pressure on Test Point For Consistent Readings, Replaceable Probe Tips, Safety Design Complies with All the Latest Standards, Silicone Insulated Wire For Extreme Flexibility and High Temperature Resistance, Wear Indication with Dual Extruded Silicone Leads Shows Black Inner Layer For Increased Safety
For Use With
For Any Multimeter or Clamp Meter
Wire Insulation
Silicone
Max. Voltage - Test Lead
1,000
Max. Amps
3
Tip Material
Beryllium Copper, Stainless Steel
Item - Test Lead
Test Probe Leads
Connection - Test Lead
Right Angle Shrouded Plug to Probe
Color Code - Test Lead
Black/Red
Insulating Material
Silicone
Max. Amps - Test Lead
3
Number of Cords
2
Max. Voltage
1000 Vrms
For Use With - Test Leads
Any Multimeter, Clamp Meter, or Test Instrument That Accepts a Standard Shrouded Banana Plug
Standards
IEC 61010-031
Color Code
Black, Red
Meter Connection Type
Right Angle Shrouded Plug
Test End Material
Stainless Steel
Test End Termination
Probe
Test End Insulation Material
Santoprene
Number of Test Leads
2
Maximum Current
3 A
Insulation Material
Santoprene
Maximum Voltage
1,000 V

Description

Test Leads, Color Code Black, Red, For Use With Any Multimeter, Clamp Meter, Test Instrument that Accepts a Standard Shrouded Banana Plug, Length 3 1/4 ft, Maximum Voltage 1,000 V, Number of Test Leads 2, Instrument Safety Rating CAT II 1000V, Maximum Current 3 A, Meter Connection Type Right Shrouded Plug, Features Gold-Plated Pogo Pin Tip Keeps Constant Pressure on Test Point for Consistent Readings, Miniature Probe for Probing Tiny, High-Density Circuits, Replaceable Probe Tips
