Shop All Idler Sprockets
Powerdrive

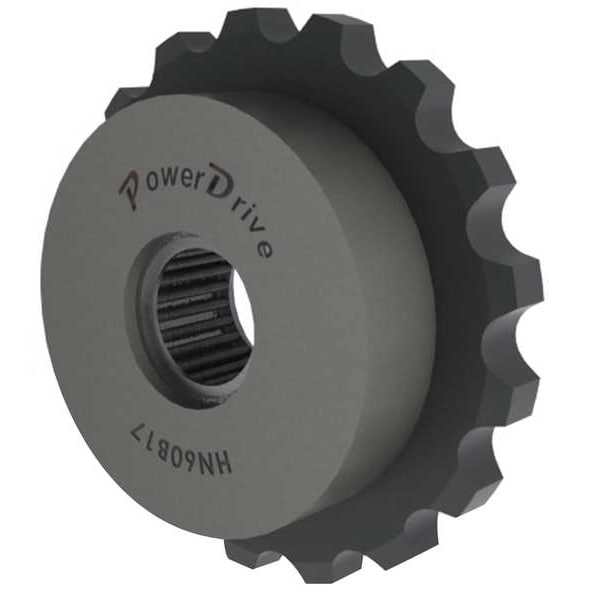

Idler Sprocket, Needle, ANSI 60

product price: $110.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Industry Chain Size 60
  • Number of Teeth - Sprockets 17
  • Outside Dia. 4.46 in
  • Bore Dia. - Sprockets 1 in
  • Bearing Type - Sprockets Needle
See all product information

Product Information

Dimensions

Industry Chain Size 60
Outside Dia. 4.46 in
Bore Dia. - Sprockets 1 in
Outside Dia. (In.) 4-15/32
ANSI Chain Size 60
Bore Dia. (In.) 1
Length through Bore (In.) 1 in
Length through Bore 1 in
Pitch Diameter 4.082 in
Sprocket Width 1 in
Bore Diameter 1 in
Outside Diameter 4.46 in
Hub Diameter 3 in
Tooth Width 0.459 in

Details

Number of Teeth - Sprockets 17
Bearing Type - Sprockets Needle
Material - Sprockets Steel
Tightener Shaft Required - Sprockets 6AGL6
Lubrication Grease
Tightener Shaft Required 6AGL6
Teeth Material Hardened Steel
Item - Idler Sprockets Idler Sprocket
Characteristics Maintains Proper Chain Tension
Bearings Needle
Number of Teeth 17
Item Needle Bearing Idler Sprocket
Chain Number 60
For Use With Tightener Shaft
Bearing Material Steel
Teeth Heat Treatment Hardened Teeth
Sprocket Material Steel
Bearing Type Needle Roller
Maximum Radial Load at Speed 1083 lb @ 1000 rpm, 1327 lb @ 500 rpm, 2174 lb @ 100 rpm, 880 lb @ 2000 rpm, 961 lb @ 1500 rpm
For Chain Pitch 3/4 in
For Number of Strands Single
Hub Projection 0.541 in

Description

Needle Bearing Idler Sprocket, Bore Diameter 1 in, Chain Number 60, Sprocket Material Steel, Number of Teeth 17, Outside Diameter 4.46 in, Bearing Material Steel, Bearing Type Needle Roller, For Chain Pitch 3/4 in, For Number of Strands Single, For Use With Tightener Shaft, Hub Diameter 3 in, Hub Projection 0.541 in, Length through Bore 1 in, Lubrication Grease, Maximum Radial Load at Speed 1083 lb @ 1000 rpm, 1327 lb @ 500 rpm, 2174 lb @ 100 rpm, 880 lb @ 2000 rpm, 961 lb @ 1500 rpm
