Shop POWERMATIC

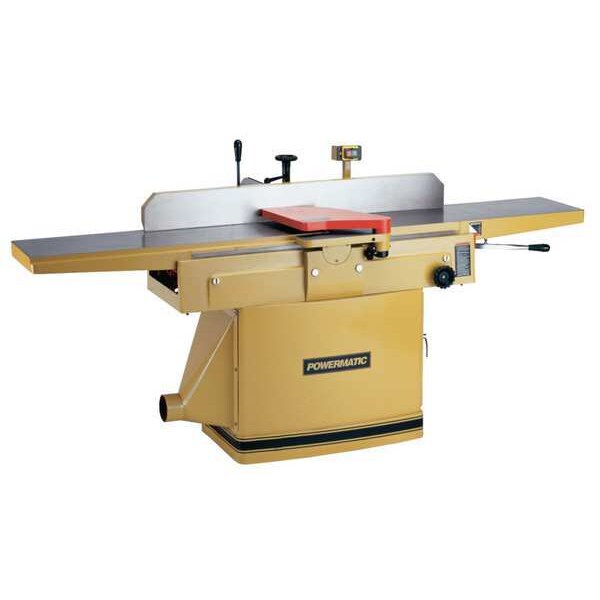

Jointer, 3 HP, 3/4 In

  • Mfr # 1791308

  • Zoro # G9878951

product price:
$
10,339.00
/ea
Additional $345.00 delivery surcharge applies per item.
See details

Key Features

Material
Cast Iron
Overall Depth
84 in
Corded/Cordless
Corded
Hz
60
Corded/Banded
Corded
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
1791308
Zoro #
G9878951
UPC #
662755506109
Country of Origin
Taiwan, Province of China

Dimensions

Overall Depth
84 in
Table Width (In.)
12 in
Overall Height (In.)
39 in
Overall Length (In.)
84 in
Table Length (In.)
84 in
Overall Width (In.)
28 in
Depth of Cut (In.)
3/4 in
Overall Height
44 in
Overall Width
38 in
Table Width
12 in
Fence Height
5 1/4 in
Dust Port Diameter
4 in
Blade Length
1/8 in
Fence Length
47 1/4 in
Blade Thickness
12 in
Depth of Cut
3/4 in
Table Length
7 ft
Blade Width
1 3/16 in

Details

Item
Jointer
Material
Cast Iron
Corded/Cordless
Corded
Hz
60
Corded/Banded
Corded
Jointing Capacity (In.)
12 in
Includes
Cutter Head Guard, Dust Port, Heavy Duty Fence, Push Blocks, Tool Kit
Rabbeting Capacity (In.)
3/4 in
No Load RPM
5,000 RPM
Tilting Angle (Deg.)
45L, 45R, 90
HP
3 hp
Construction
Cast Iron/Metal
Tool Weight (Lb.)
762
Features
Helical Cutter Head with 2 to Sided Carbide inserts for Fast Knife Changes with No Adjustments, Rack and Pinion Adjustable Cast Iron Fence Assembly for Smooth Fence Positioning without Play, Large 84 in X 12 in Table Surface for Heavy to Duty Work, Table in LIPS in on Both Sides of Cutter Head Aid in Noise Reduction, Full Size Rabbeting Ledge Supports Large Work Pieces for Rabbets Up to 3/4 in Deep, 3 hp Motor Provides Plenty of Power
Amps
6.5 A
Head
Helical
Voltage
230V
Tool Weight
762 lb
Phase
Three-Phase
Number of Blades
3
Tilting Angle
45 Degrees Left, 45 Degrees Right, 90 Degrees
Minimum Airflow for Dust Collection
800 cfm
Rabbeting Capacity
3/4 in
Jointer Type
Floor Standing
Horsepower
3 hp
Power Source
Corded
Kit Contents
Bare Tool
Included Fence
Yes
Cutter Type
Helical Head
Current
6.5 A
Jointing Capacity
12 in
Cutter Speed
5,000 RPM
Power Source - TS Only
Corded
Power Source - old
Corded

Description

Jointer, Jointer Type Floor Standing, Power Source Corded, Voltage 230V, Phase Three-Phase, Current 6.5 A, Horsepower 3 hp, Jointing Capacity 12 in, Depth of Cut 3/4 in, Cutter Speed 5,000 RPM, Cutter Type Helical Head, Table Length 7 ft, Table Width 12 in, Kit Contents Bare Tool, Includes Cutter Head Guard, Dust Port, Heavy Duty Fence, Push Blocks, Tool Kit, Tool Weight 762 lb, Blade Length 1/8 in, Blade Thickness 12 in, Blade Width 1 3/16 in, Dust Port Diameter 4 in, Fence Height 5 1/4 in
