Precision Coils

Heating Coil, 600cfm, 3.8gpm, 4x14x14"

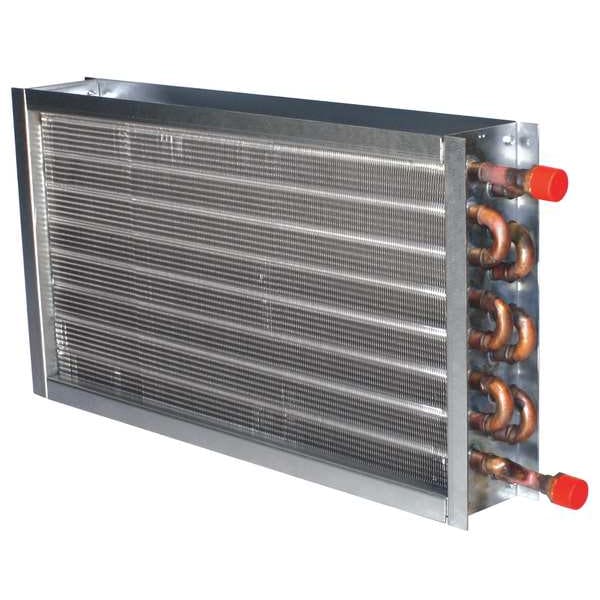

Precision Coils Heating Coil, 600cfm, 3.8gpm, 4x14x14" W1021212N
Hover or click to zoom Tap to zoom
$628.52
  • Item: Hydronic Duct Heating and Cooling Coil
  • Fluid Type: Hot Water
  • Air Flow: 600 cfm
See full product details
This item ships free.

Total: $628.52

Precision Coils #W1021212N Specifications

  • Item: Hydronic Duct Heating and Cooling Coil
  • Fluid Type: Hot Water
  • Air Flow: 600 cfm
  • Flow Capacity: 3.8 gpm
  • Casing Type: Flanged
  • Casing Length: 14 in
  • Casing Depth: 4 in
  • Casing Height: 14 in
  • Face Area: 1 sq ft
  • Supply and Return Connection: 3/4 in
  • Air Pressure Drop: 0.2 psi
  • Fins per Inch: 10
  • Fin Length: 12 in
  • Fin Thickness: 0.006 in
  • Fin Height: 12 in
  • Tube Outside Dia.: 5/8 in
  • Leaving Dry Bulb: 112.1 Degrees F
  • Tube Material: Copper
  • Tube Wall Thickness: 3/16 in
  • Fin Material: Aluminum
  • Fin Type: Sine
  • Casing Material: 16 ga Galvanized Steel
  • Entering Dry Bulb: 55 Degrees F
  • Number of Rows: 2
  • Total Capacity: 37.1 mbh
  • Connection Type: MPT Copper
  • Coils Per Bank: 1
  • Number of Feeds: 1
  • Coils per Bank: 1
  • Casing Width: 14 in
  • Casing Connection Type: Flanged
  • Temperature Entering/Leaving Coil: 55 Degrees F/112.1 Degrees F
  • Casing H x W x D: 14 in x 14 in x 4 in
  • Standards: AHRI to AHRI Standard 410
  • Tube Outer Diameter: 5/8 in
  • Heating Capacity: 37,100 BtuH
  • Fin L x H: 12 in x 12 in
  • Temperature Leaving Coil: 112.1 Degrees F
  • Temperature Entering Coil: 55 Degrees F
  • Number of Feeds/Rows: 1/2
  • Required Air Flow: 600 cfm
  • Country of Origin (subject to change): United States

Description

Hydronic Duct Heating and Cooling Coil, Casing Connection Type Flanged, Flow Capacity 3.8 gpm, Required Air Flow 600 cfm, Number of Feeds 1, Number of Rows 2, Fin Length 12 in, Fin Height 12 in, Casing Height 14 in, Casing Width 14 in, Casing Depth 4 in, Casing Material 16 ga Galvanized Steel, Connection Type MPT Copper, Temperature Entering Coil 55 Degrees F, Temperature Leaving Coil 112.1 Degrees F, Tube Material Copper, Tube Outer Diameter 5/8 in, Tube Wall Thickness 3/16 in, Air Flow 600 cfm
