Prince

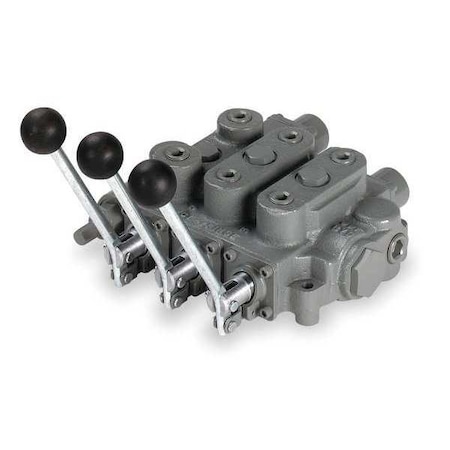

Valve, 4 Way, 3/4 In NPT

product price: $689.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Valve Type - Hydraulic Valves Hydraulic Directional Control Valve
  • Number of Spools - Hydraulic Valves 3
  • Valve Ways and Positions 4-Way/3-Position
  • Spool Action Detent/Spring Center To Neutral
  • Max. Flow - Hydraulic Valves 25 gpm
See all product information

Product Information

Dimensions

Inlet Port Size - Hydraulic Valves 3/4 in NPT
Outlet Port Size - Hydraulic Valves 3/4 in NPT
Height (In.) 3 1/4 in
Width (In.) 9 1/2 in
Length (In.) 10 15/16 in
Work Port Size - Hydraulic Valves 1/2 in NPT
Overall Height 3.25 in
Overall Length 10.938 in
Overall Width 9.5 in
Work Connection Size 1/2 in
Tank Connection Size 3/4 in
Pressure Connection Size 3/4 in

Details

Valve Type - Hydraulic Valves Hydraulic Directional Control Valve
Number of Spools - Hydraulic Valves 3
Valve Ways and Positions 4-Way/3-Position
Spool Action Detent/Spring Center To Neutral
Max. Flow - Hydraulic Valves 25 gpm
Max. Pressure - Hydraulic Valves 3,000 psi
For Use With Double Acting Cylinders
Factory Preset Relief Valve Setting (PSI) 2000 psi @ 10 GPM
Type Monoblock
Item Hydraulic Directional Valve
Max. Pressure (PSI) 3000
Inlet/Outlet NPT (In.) 3/4
Spools 3
Adjustable PSI Range 1500 to 3000
Ways 4
Center Tandem
Relief Valve Range (PSI) 1500 to 3000
NPT Port (In.) 1/2
Flow Capacity (GPM) 25
Valve Type Control
Series RD5000
Number of Positions Three Positions
Number of Ways Four-Way
Pressure Connection Type NPT
Relief Valve Pressure Setting - Minimum 1,500 psi
Supply Pressure - Maximum 3,000 psi
Pressure Setting - Minimum 1,500 psi
Actuation Mechanism Manual
Flow Rate - Maximum 25 gpm
Port Connections Inlet, Outlet, Work
Relief Valve Pressure Setting - Maximum 2,000 psi
Work Connection Type NPT
Pressure Setting - Maximum 3,000 psi
Valve Control Directional Control
Tank Connection Type NPT
Center Position Tandem Center
Number of Spools 3

Description

Hydraulic Directional Valve, Flow Rate - Maximum 25 gpm, Number of Positions Three Positions, Number of Ways Four-Way, Pressure Setting - Maximum 3,000 psi, Spool Action Detent/Spring Center To Neutral, Port Connections Inlet, Outlet, Work, Center Position Tandem Center, Series RD5000, Number of Spools 3, Pressure Setting - Minimum 1,500 psi, Actuation Mechanism Manual, Relief Valve Pressure Setting - Maximum 2,000 psi, Work Connection Type NPT, Pressure Connection Type NPT
