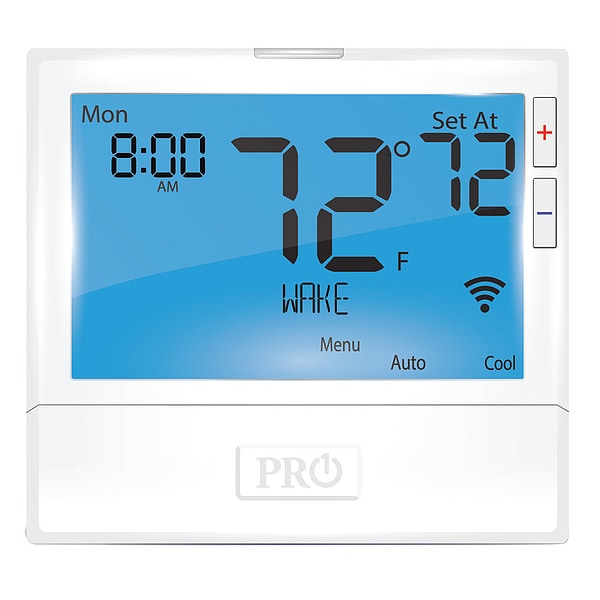

Wireless Low Voltage Thermostat, 7 or 5-1-1 Programs, 4 Heat Pump or 2 Conventional H, 2 C, 24V AC

  • Mfr # T855iSH

  • Zoro # G8270774


product price: $265.79
/ea
Free Shipping & Returns

Key Features

Voltage
24V AC
Stages Heat
4 Heat Pump or 2 Conventional
Color
White
Control Range
44 Degrees to 90 Degrees F
System Switching
Auto-Heat-Cool-Off
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
T855iSH
Zoro #
G8270774
UPC #
-
Country of Origin
Mexico

Dimensions

Height
4-13/32 in
Width
4-45/64 in
Display Size
8 sq in
Depth
1-7/64 in
Screen Height
2 1/2 in
Overall Depth
1 1/8 in
Overall Height
4 3/8 in
Overall Width
4 11/16 in

Details

Item
Wireless Low Voltage Thermostat
Voltage
24V AC
Stages Heat
4 Heat Pump or 2 Conventional
Color
White
Control Range
44 Degrees to 90 Degrees F
System Switching
Auto-Heat-Cool-Off
Stages Cool
2
Dual Transformer Compatible
Yes
Power Method
Hardwired/Battery
Programs per Week
7 or 5-1-1
For Use With
Heating and Cooling
Automatic Changeover
Yes
Key Pad Lockout
Yes
Temporary Temperature Hold
Yes
Input Voltage
24V AC
Filter Indicator
Yes
Programmable Fan
Yes
Includes
Screws, Anchors
Terminal Designations
B, C, G, O, RC, RH, S1, S2, W/E, W2, Y, Y2
Features
Humidity and Dehumidity Control, Glow In The Dark Light Button, Auto Changeover, WIFI
Control Type
Push Button
Low Battery Indicator
Yes
WiFi Capability
Yes
Temp. Settings per Day
2 or 4
Battery Backup
Yes
Stages
2H/2C Conventional, 5H/3C Heat Pump
Temperature Limiting
No
Batteries Included
Yes
Temporary Program Override
Yes
Dehumidification Control
Yes
Display Type
Digital
Humidification Control
Yes
Amazon Alexa Compatible
No
Application/Stages
Heat and Cool; 2H/2C Conventional, 5H/3C Heat Pump
Thermostat Type
Low Voltage
Differential Type
Adjustable
Requires C-Wire
No
Compatible System Type
Electric Forced Air Furnaces, Gas Forced Air Furnaces, Heat Pump with Aux
Filter Change Reminder
Yes
Maximum Temperature Control
90 Degrees F
Temperature Scale
Fahrenheit/Celsius
Application
Heat and Cool
Electrical Connection Type
Hardwired
Mounting Direction
Vertical
Includes Positive Off
Yes
Number of Cooling Stages - Conventional System
2
Number of Heating Stages - Heat Pump System
5
Number of Cooling Stages - Heat Pump System
3
Compatible Software/Device
Android, Apple Homekit
Temperature Readout
Yes
Battery Type
(2) AA Batteries
Changeover Type
Automatic
Mounting Direction/Shape
Square
Fan Settings
Hi-Med-Low
Smart Connectivity
Wi-Fi Control
Housing Color
White
Frequency
50 Hz, 60 Hz
Maximum Operating Humidity
90 %
Backlit Screen
Yes
Programming Capability
7-Day
Minimum Temperature Control
44 Degrees F
Temperature Differential
1 Degrees F
Temperature settings per day
2 or 4
Includes Batteries
Yes
Number of Heating Stages - Conventional System
2
Shape
Square
System Settings
Auto-Cool-Heat-Off
Backlit Screen Color
Blue

Description

Wireless Low Voltage Thermostat, Heat and Cool, Automatic, Electric Forced Air Furnaces, Gas Forced Air Furnaces, Heat Pump with Aux, Push Button, Dehumidification Control Yes, Differential Type Adjustable, Digital, Dual Transformer Compatible Yes, Fan Settings Hi-Med-Low, Humidification Control Yes, Includes Positive Off Yes, Key Pad Lockout Yes, Minimum Temperature Control 44 Degrees F, Maximum Temperature Control 90 Degrees F, Mounting Direction Vertical
