Procon

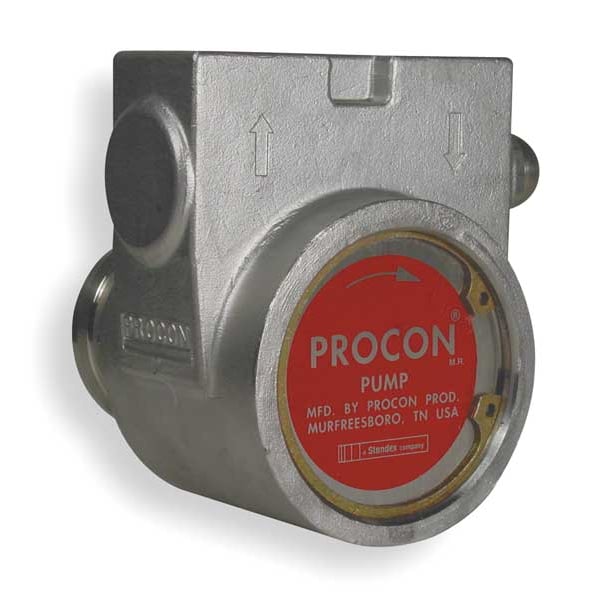

Pump, Rotary Vane, SS, GPH: 330

product price: $314.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Relief Pressure Max. (PSI) 250 psi
  • GPH of Water @ 250 PSI 326 gph
  • Max. Temp. (F) 158 Degrees F
  • GPH of Water @ 150 PSI 328 gph
  • HP @ 250 PSI 1 1/4 hp
See all product information

Product Information

Dimensions

Overall Width 4.3 in
Overall Length 3.4 in
Overall Height 3.9 in
Discharge Connection Size 1/2 in
Media Intake Connection Size 1/2 in
Shaft Outer Diameter 1/2 in

Details

Item Rotary Vane Pump
Relief Pressure Max. (PSI) 250 psi
GPH of Water @ 250 PSI 326 gph
Max. Temp. (F) 158 Degrees F
GPH of Water @ 150 PSI 328 gph
HP @ 250 PSI 1 1/4 hp
GPH of Water @ 100 PSI 330 gph
Inlet/Outlet NPTF (In.) 1/2 in
HP @ 100 PSI 3/4 hp
Min. Flow Rate (GPH) 326 gph
Relief Valve PSI Setting 200 psi
Shaft 303 Stainless Steel
HP @ 150 PSI 3/4 hp
GPH of Water @ 50 PSI 331 gph
HP @ 50 PSI 1/3 hp
External Relief Required
Body Material Stainless Steel
Max. Flow (GPH) 346 gph
By-Pass No
GPH of Water @ 200 PSI 327 gph
HP @ 200 PSI 1 hp
GPH 330 gph
Mounting Carbonator Clamp Style
Max. Pressure (PSI) 250 psi
Vane Material Carbon
Shaft Material 303 Stainless Steel
Includes Relief Valve
Standards NSF, RoHS
Feet of Head - Maximum 6 ft of head
Seal Material Carbon, Ceramic
Operating Temperature - Maximum 160 Degrees F
Viscosity - Maximum 100 cps
Media Intake Connection Type FNPT
Includes Filter No
Flow Rate @ 250 psi 326 gph
Flow Rate @ 50 psi 331 gph
Flow Rate - Minimum 326 gph
NSF 169 Listed Yes
Discharge Connection Type NPT
Flow Rate @ 100 psi 330 gph
Flow Rate - Maximum 330 gph
Compatible Motor Frame 48Y NEMA
Operating Pressure - Maximum 250 psi
Flow Rate @ 200 psi 327 gph
Flow Rate @ 150 psi 328 gph
Operating Temperature - Minimum -4 Degrees F
For Media Type No

Description

Rotary Vane Pump, Flow Rate - Maximum 330 gph, Feet of Head - Maximum 6 ft of head, Mounting Type Carbonator Clamp, Compatible Motor Frame 48Y NEMA, Media Intake Connection Size 1/2 in, Media Intake Connection Type FNPT, Discharge Connection Size 1/2 in, Discharge Connection Type NPT, Vane Material Carbon, Includes Filter No, Filter Rating - Maximum Not Applicable, For Media Type No, NSF 169 Listed Yes, Operating Pressure - Maximum 250 psi, Operating Temperature - Minimum -4 Degrees F
