Shop DELAVAN FLUID POWER

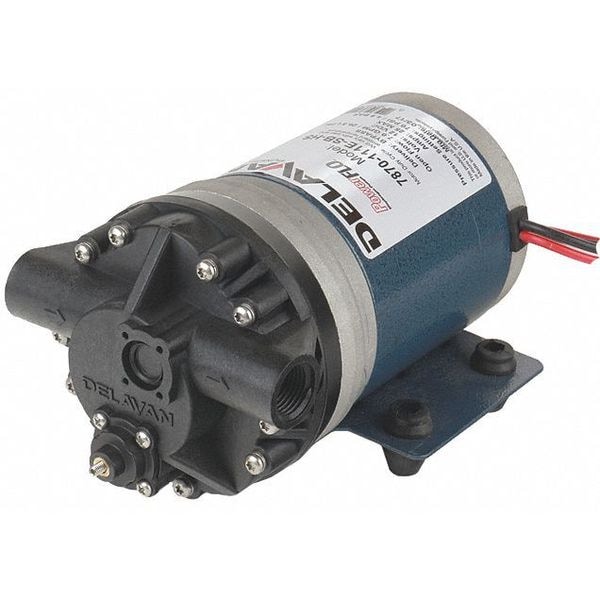

Diaphragm Pump, Polypropylene, Santoprene, 12VDC, 7.0 GPM

  • Mfr # 7870-111E-SB-HS

  • Zoro # G1593702

product price:  $232.99
/ea
Free Shipping & Returns

Key Features

Housing Material - Pumps
Polypropylene
Valve Material
Santoprene®
Air Intake Connection Size
1/2 in FNPT
Diaphragm Material
Santoprene
Media Temperature (Maximum)
140 Degrees F
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
7870-111E-SB-HS
Zoro #
G1593702
UPC #
830344009298
Country of Origin
United States

Dimensions

Air Intake Connection Size
1/2 in FNPT
Overall Height
4.8 in
Overall Length
9.1 in
Overall Width
5.5 in
Media Intake Connection Size
1/2 in
Media Discharge Connection Size
1/2 in
Intake Connection Size
1/2 in
Discharge Connection Size
1/2 in
Discharge Diameter
1/2 in
Shaft Outer Diameter
8 mm
Inlet Diameter
1/2 in

Details

Item
Diaphragm Pump
Housing Material - Pumps
Polypropylene
Valve Material
Santoprene®
Diaphragm Material
Santoprene
Media Temperature (Maximum)
140 Degrees F
Operating Pressure (Maximum)
60 psi
Fuse Amps
35 A
Motor Type
Totally enclosed Nonventilated
Features
Heat Sink On Motor to Keep It Cool, FB2 Series
Agency Compliance
CE/NSF
Inlet/Outlet
1/2 FNPT
Diaphragm Design
Five Chamber
Type
Diaphragm
Pressure Switch
No
Pressure On
20 psi
Prime in Feet
8
Pressure Off
100 psi
Pump Operation Type
Electric
Standards
NSF Certified
Priming
Self-Priming
Nameplate Voltage
12V DC
Flow Rate @ 20 psi
6.3 gpm
Series
FB2
Flow Rate (Maximum)
7 gpm
Flow Rate @ 0 psi
7.2 gpm
Flow Rate @ 40 psi
5.1 gpm
Current
35 A
Diaphragm Chamber Design
5
Motor Enclosure
Totally Enclosed Non-Ventilated
Media Intake Connection Type
FNPT
Media Discharge Connection Type
FNPT
Housing Material
Polypropylene
Discharge Connection Type
FNPT
Check Valve Material
Santoprene
Intake Connection Type
FNPT
Feet of Head (Maximum)
138.4 ft
Gasket Material
FKM
Includes Regulator
No Regulator Included
Electrical Connection Type
Two-Pin Molded Connector
Number of Diaphragms
1
Discharge Pressure - Maximum
60 psi
Bypass Pressure
10 psi
Pump Control Type
Bypass
Pump Drive Configuration
Electric Motor Unit
Fluid Head Material
Polypropylene
Full Load Current
22.5
Self-Priming Lift - Maximum
12 ft
Chemical Compatibility
Fertilizer, Herbicide
Phase
Single
Power Source
Electric
Includes Gearbox
No Gearbox Included
Media Temperature - Maximum
140 Degrees F
Pumping Application
Boom Spraying, Chemical Transfer, Deicing, Disinfectant/Sanitizer Spraying, Fertilizer Application, Herbicide Spraying, Irrigation, Lawn Care, Orchard Spraying, Pest Control, Pesticide Spraying, Soft Wash, Turf Spraying, Vineyard Spraying, Water Transfer
Pump Technology
Diaphragm
Motor Speed - Maximum
2,200 RPM
Includes Heat Sink
Heat Sink Included
Power Source - TS Only
Electric

Description

Diaphragm Pump, Operating Pressure (Maximum) 60 psi, Diaphragm Chamber Design 5, Diaphragm Material Santoprene, Check Valve Material Santoprene, Discharge Connection Size 1/2 in, Discharge Connection Type FNPT, Flow Rate (Maximum) 7 gpm, Housing Material Polypropylene, Intake Connection Size 1/2 in, Intake Connection Type FNPT, Nameplate Voltage 12V DC, Priming Self-Priming, Pump Operation Type Electric, Pressure Switch No, Standards NSF Certified, Feet of Head (Maximum) 138.4 ft
