  11. 316 SS mounting flange with full coupling.
Proximity 316 SS mounting flange with full coupling. FLG-SSF - main

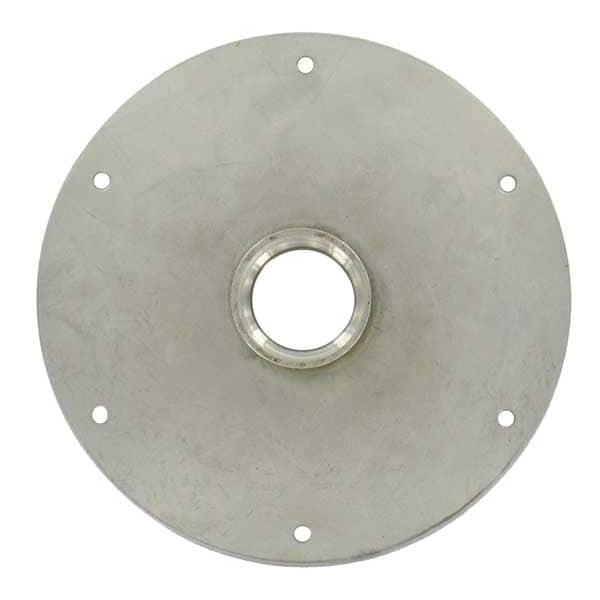

316 SS mounting flange with full coupling.

  • Mfr # FLG-SSF

  • Zoro # G2329783

product price: $162.99
/ea
Free Shipping & Returns

Key Features

For Use With
2HMD1
Special Features
Stainless steel
Manufacturers Warranty Length
1 yr
Switch Type
SPDT or optional DPDT snap switch.
Process Connection
1-1/4" male NPT. Optional flange.
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
FLG-SSF
Zoro #
G2329783
UPC #
-
Country of Origin
United States

Dimensions

Manufacturers Warranty Length
1 yr

Details

Item
Full Coupling Flange
For Use With
2HMD1
Special Features
Stainless steel
Switch Type
SPDT or optional DPDT snap switch.
Process Connection
1-1/4" male NPT. Optional flange.
Features
316 Stainless Steel Mounting Flange with Full Coupling
Enclosure Rating
Weatherproof (W, WH construction): NEMA 4X, Explosion-proof (E, EH construction): NEMA 4X and rated for Class I, Div. 1 & 2, Groups C & D, Div. 1 & 2, Groups E, F, & G.
Temperature Limits
Standard Construction: Process: -40 to 300°F (-40 to 148.9°C), Ambient: -40 to 185°F (-40 to 85°C); High Temperature: Process: -40 to 500°F (-40 to 260°C), Ambient: -40 to 185°F (-40 to 85°C).
Electrical Rating
15 A @ 120.
Power Consumption
Weatherproof models: 5 watts, Explosion-proof models: 3 watts.
Pressure Limit
30 psig (2.07 bar) maximum for .5 micron or larger material.
Agency Approvals
cUL, UL approved as an auxiliary device or as an auxiliary device for hazardous locations.
Service
Dry powder or bulk materials compatible with wetted materials.
Conduit Connection
3/4" female NPT.
Wetted Materials
Paddles: 316 SS. Exposed Shaft: 316 SS. Shaft Seal: PTFE. Mounting Boss: Aluminum. Flexible Coupling: 316 SS. Mounting Flanges: Carbon Steel or 316 SS. Shaft Extension and Shaft Guards: Galvanized Steel or 316 SS.
Compatible Product Type
Paddle Level Switch
Product Type
Full Coupling Flange
Compatible with Manufacturer Model Number
PLS-W-S-1-0-0-0-0, PLS-W-S-1-2-CSH-0-0, PLS-W-S-1-3-0-0-0
Compatible Manufacturer Model Number
PLS-W-S-1-0-0-0-0, PLS-W-S-1-2-CSH-0-0, PLS-W-S-1-3-0-0-0
Compatible Manufacturer Part Number
PLS-W-S-1-0-0-0-0, PLS-W-S-1-2-CSH-0-0, PLS-W-S-1-3-0-0-0
Compatible with Manufacturer Model No.
PLS-W-S-1-0-0-0-0, PLS-W-S-1-2-CSH-0-0, PLS-W-S-1-3-0-0-0
Compatible with Mfr. Model No.
PLS-W-S-1-0-0-0-0, PLS-W-S-1-2-CSH-0-0, PLS-W-S-1-3-0-0-0
For Use with Mfr Model Number
PLS-W-S-1-0-0-0-0, PLS-W-S-1-2-CSH-0-0, PLS-W-S-1-3-0-0-0
For Use With Mfr. Model Number
PLS-W-S-1-0-0-0-0, PLS-W-S-1-2-CSH-0-0, PLS-W-S-1-3-0-0-0
Compatible Pump Manufacturer Part Number
PLS-W-S-1-0-0-0-0, PLS-W-S-1-2-CSH-0-0, PLS-W-S-1-3-0-0-0
Compatible Mfr. Model Number
PLS-W-S-1-0-0-0-0, PLS-W-S-1-2-CSH-0-0, PLS-W-S-1-3-0-0-0

Description

Full Coupling Flange, For Use With 2HMD1, Special Features Stainless Steel
