  11. Tuning fork level switch, no probe extension.

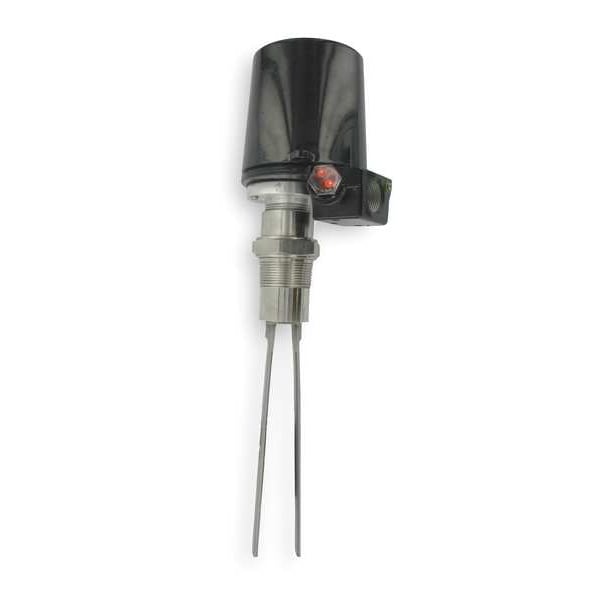

Proximity Tuning fork level switch, no probe extension. TFLS-W11SR1 - main

Tuning fork level switch, no probe extension.

  • Mfr # TFLS-W11SR1

  • Zoro # G3335823

product price: $1,186.99
/ea
Free Shipping & Returns

Key Features

Type
Tuning Fork
Enclosure
NEMA 4X
Switch Type
SPDT
Manufacturers Warranty Length
1 yr
Probe Length (In.)
19 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TFLS-W11SR1
Zoro #
G3335823
UPC #
714452102037
Country of Origin
United States

Dimensions

Manufacturers Warranty Length
1 yr
Probe Length (In.)
19 in
Sensor Probe Length
6 in
Probe Length
19 in
Process Connection Thread Size
1 1/2"

Details

Item
Level Switch
Type
Tuning Fork
Enclosure
NEMA 4X
Switch Type
SPDT
Includes
Instructions
Process Connection
1-1/2 in Male NPT
Power Required
24VDC, 90 to 260VAC
Contact Rating
5A @ 230V AC Res.
Contact Form
SPDT
Features
No Calibration Required.; Vibrating Fork Design: Great for low bulk density and low dielectric constant products. Will detect products down to 1.8 lb/ft3 (30 g/l).; Universal Power Supply: One model works with 90 to 265 VAC and 24 VDC.; Adjustable Sensitivity: Can be set to ignore lighter bulk density products and only detect heavier products, such as sand in water.; Status Indication: External LED switch indicator, and internal indicators for normal and alarm status.; Failsafe Setting: Output switch can be set for Normally Open or Normally Closed condition on loss of power.; Time Delay: Prevent false alarms from material surges.; No Maintenance Required.; Any Position Mounting: Available with factory built extensions for mounting on the top of the storage vessel.
Enclosure Rating
Weatherproof, NEMA 4X.
Product Type
Level Switch
Conduit Connection
3/4" female NPT.
Wetted Materials
316 SS.
Temperature Limits
Ambient: -4 to 140°F (-20 to 60°C).
Service
Dry powder or bulk materials compatible with wetted materials. Can detect bulk materials submerged in liquid.
Power Consumption
4 VA.
Pressure Limit
145 psig (10 bar).
Electrical Rating
5 A @ 230 VAC.
Process Connection Thread Gender
Male
NEMA Enclosure Rating
4X
Input Voltage - Minimum
90 V AC
Level Switch Type
Tuning Fork
IP Rating
IP66
Contact Rating - AC
5 A @ 230V AC
Process Connection Thread Type
NPT
Input Voltage - Maximum
265 V AC

Description

Level Switch, Tuning Fork, Power Required 90 to 260VAC, 24VDC, Enclosure NEMA 4X, Switch Type SPDT, Contact Rating 5A @ 230VAC Res., Probe Length (In.) 19, Process Connection 1-1/2" Male NPT, Includes Instructions, Manufacturers Warranty Length 1 Year
