Qa1

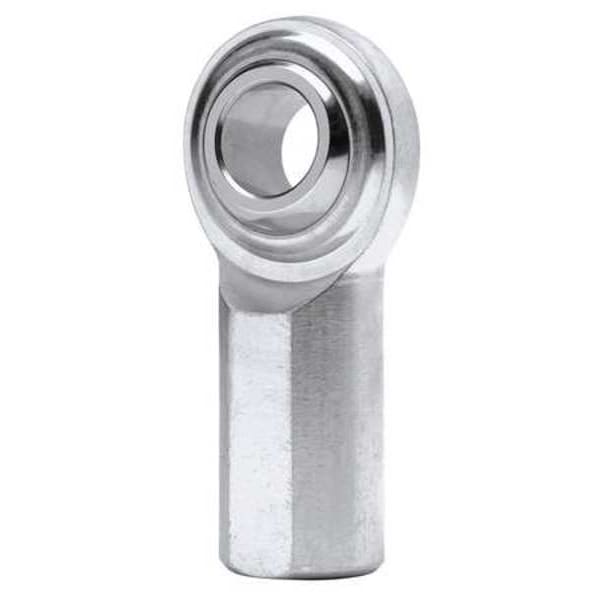

Female Rod End, SS, RH, 7/16-20

product price: $16.79
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Type Female Plain
  • Ball 440C Stainless Steel Spherical
  • Thread Right Hand
  • Thread Size 7/16"-20
  • Inside Dia. 0.4375/0.4395 in
See all product information

Product Information

Dimensions

Thread Size 7/16"-20
Inside Dia. 0.4375/0.4395 in
Dimension AA 0.4375/0.4395 in
Dimension H 0.937 in
Dimension A 7/16"-20
Dimension J 2.375 in
Dimension E 1.125 in
Dimension N 0.562 in
Dimension G 1.812 in
Bore Diameter 7/16 in
Bore Diameter Tolerance +0.0015/-0.0005 in
Ball Diameter 0.812 in
Overall Length 2 3/8 in
Head Outside Diameter 1 1/8 in
Inner Ring Width 0.562 in
Shank Thread Length 7/8 in
Head Width 0.406 in
Shank Thread Size 7/16"-20

Details

Type Female Plain
Ball 440C Stainless Steel Spherical
Thread Right Hand
Housing 300 Series Stainless Steel
Construction Follows SAE Specification J1120
Bearings 440C Stainless Steel Spherical Ball
Item Spherical Rod End
Max. Angular Misalignment 21 Degrees
Static Radial Load 5,689 lb
Shank Thread Gender Female
Resistance Properties Corrosion Resistant
Self Lubricating Bearing Yes
Race Material PTFE
Rod End Type Spherical Rod End
Ball Material Stainless Steel
Shank Thread Direction Right Hand
Application Light Duty
Ball Material Grade 440C
Housing Material Finish Chrome Plated
Static Radial Load Capacity 5,689 lbf
Housing Material Stainless Steel
System of Measurement Inch
Standards ISO Certified 9001
Maximum Ball Swivel 21 Degrees

Description

Spherical Rod End, System of Measurement Inch, Bore Diameter 7/16 in, Head Outside Diameter 1 1/8 in, Head Width 0.406 in, Shank Thread Length 7/8 in, Shank Thread Size 7/16 In.-20, Housing Material Stainless Steel, Shank Thread Direction Right Hand, Application Light Duty, Ball Diameter 0.812 in, Ball Material Stainless Steel, Ball Material Grade 440C, Bore Diameter Tolerance +0.0015/-0.0005 in, Housing Material Finish Chrome Plated, Inner Ring Width 0.562 in, Maximum Ball Swivel 21 Degrees
