Qa1

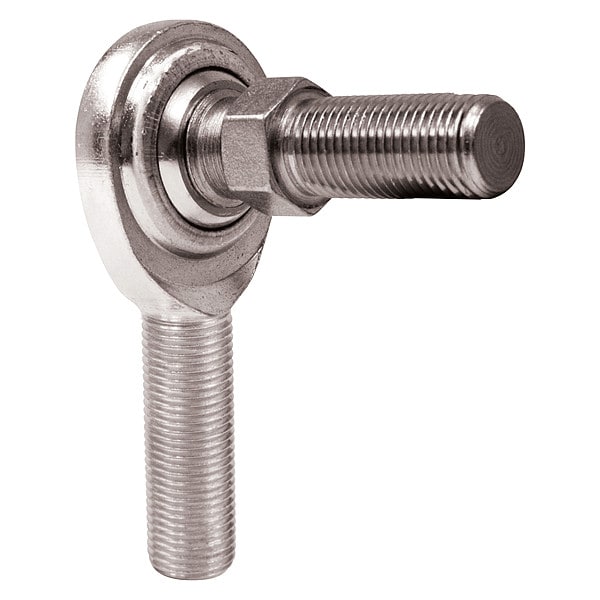

Male Stud Rod End, RH, 3/8-24

product price: $7.99
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Type Male Studded
  • Ball 52100 Steel Spherical
  • Thread Right Hand
  • Thread Size 3/8"-24
  • Stud Length 0.906 in
See all product information

Product Information

Dimensions

Thread Size 3/8"-24
Stud Length 0.906 in
Dimension H 1.25 in
Dimension G 1.938 in
Dimension B 0.656 in
Dimension A 3/8"-24
Dimension C 0.906 in
Dimension J 2.438 in
Dimension E 1.0 in
Shank Thread Length 1 1/4 in
Inner Ring Width 0.5 in
Bore Diameter 3/8 in
Overall Length 2 7/16 in
Ball Stud Thread Length 3/4 in
Shank Thread Size 3/8"-24
Head Width 0.359 in
Ball Stud Center Length 1 1/2 in
Head Outside Diameter 1 in
Bore Diameter Tolerance +0.0025/-0.0005 in
Ball Stud Thread Size 3/8"-24
Ball Diameter 0.719 in

Details

Type Male Studded
Ball 52100 Steel Spherical
Thread Right Hand
Housing Carbon Steel
Construction Follows SAE Specification J1120
Static Radial Load 6,323 lb
Bearings 52100 Steel Spherical Ball
Item Spherical Rod End
Max. Angular Misalignment 22 Degrees
Housing Material Carbon Steel
Standards ISO Certified 9001
Ball Material Grade 52100
Self Lubricating Bearing Yes
Ball Stud Material Carbon Steel
Static Radial Load Capacity 6,323 lbf
Ball Material Alloy Steel
Housing Material Finish Chrome Plated
Shank Thread Gender Male
Maximum Ball Swivel 22 Degrees
Rod End Type Spherical Rod End
System of Measurement Inch
Shank Thread Direction Right Hand
Application Light Duty
Resistance Properties Corrosion Resistant
Ball Stud Thread Direction Right Hand

Description

Spherical Rod End, System of Measurement Inch, Ball Stud Center Length 1 1/2 in, Ball Stud Thread Length 3/4 in, Ball Stud Thread Size 3/8 In.-24, Bore Diameter 3/8 in, Head Outside Diameter 1 in, Head Width 0.359 in, Shank Thread Length 1 1/4 in, Shank Thread Size 3/8 In.-24, Housing Material Carbon Steel, Shank Thread Direction Right Hand, Application Light Duty, Ball Diameter 0.719 in, Ball Material Alloy Steel, Ball Material Grade 52100, Ball Stud Material Carbon Steel
