Shop All Spherical Rod Ends
Qa1

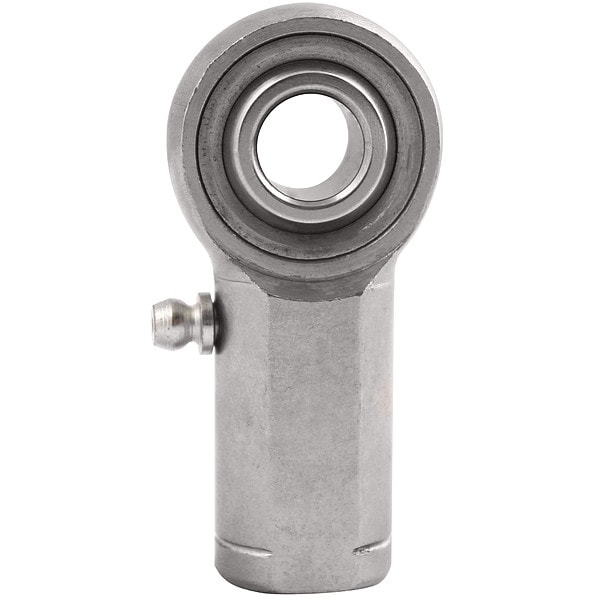

Precision Greasable Rod End, Steel
Mfr # KFL12Z
Zoro # G410191906
product price: $34.95
/ea
$34.95
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Minimum Temperature -65 Degrees F
- Application Automotive
- Standards ISO 9001
- Ball Stud Material Carbon Steel
- System of Measurement Inch
Product Information
- Brand Qa1
- MFR # KFL12Z
- Zoro # G410191906
- UPC # 806990172518
- Country of Origin China
- Category Spherical Rod Ends
Dimensions
| Ball Stud Thread Length | 1 3/4 in |
| Ball Stud Center Length | 2 7/8 in |
| Bore Diameter Tolerance | -0.0005/+0.0015 in |
| Shank Thread Length | 1 3/4 in |
| Bore Diameter | 3/4 in |
| Ball Stud Thread Size | 3/4"-16 |
| Shank Thread Size | 3/4"-16 |
| Inner Ring Width | 0.875 in |
| Head Width | 0.687 in |
| Overall Length | 3 3/4 in |
| Head Outside Diameter | 1 3/4 in |
| Ball Diameter | 1.312 in |
Details
Description
Precision Greasable Rod End, System of Measurement Inch, Ball Stud Center Length 2 7/8 in, Ball Stud Thread Length 1 3/4 in, Ball Stud Thread Size 3/4 In.-16, Bore Diameter 3/4 in, Head Outside Diameter 1 3/4 in, Head Width 0.687 in, Shank Thread Length 1 3/4 in, Shank Thread Size 3/4 In.-16, Housing Material Carbon Steel, Shank Thread Direction Left Hand, Application Automotive, Ball Diameter 1.312 in, Ball Material 52100 Steel Spherical, Ball Material Grade 52100
Restrictions
- WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
