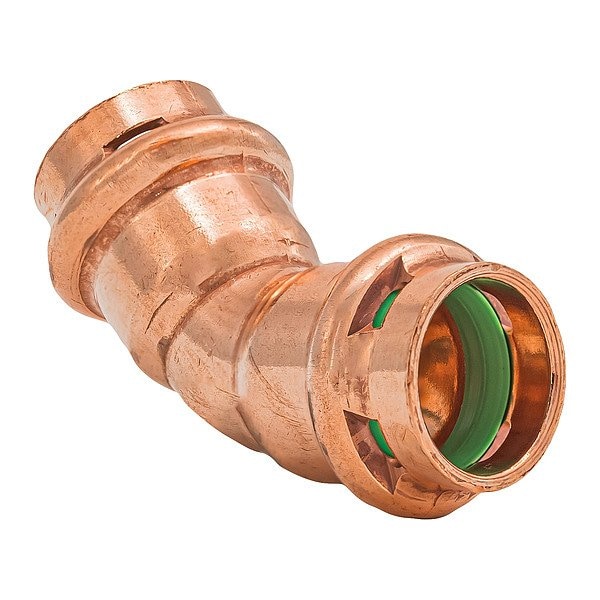

Elbow, Copper, Press-fit 1/2", 1/2"
Mfr # SPWE11-45R
Zoro # G716244962
product price: $2.19
/eaKey Features
Standards
ASME B16.18, ASME B16.22, ASME B16.26, ASTM B88, cUPC, IAPMO/ANSI Z1117, IAPMO/ANSI Z1157, NSF/ANSI 372, NSF/ANSI 61
For Media Type
Potable Water
Compatible Tool Brand
Quick Fitting
Fitting Side 2 Tube Outer Diameter
5/8 in
Fitting Side 1 Connection Type
Press-fit
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
SPWE11-45R
Zoro #
G716244962
UPC #
845526027588
Country of Origin
Viet Nam
Dimensions
Fitting Side 2 Tube Outer Diameter
5/8 in
Fitting Side 1 Tube Outer Diameter
5/8 in
Fitting Side 2 Copper Tube Size
1/2 in
Fitting Side 1 Copper Tube Size
1/2 in
Details
Item
Press Copper 45-Degree Elbow
Standards
ASME B16.18, ASME B16.22, ASME B16.26, ASTM B88, cUPC, IAPMO/ANSI Z1117, IAPMO/ANSI Z1157, NSF/ANSI 372, NSF/ANSI 61
For Media Type
Potable Water
Compatible Tool Brand
Quick Fitting
Fitting Side 1 Connection Type
Press-fit
O-Ring Material
EPDM
Color
Copper
Fitting Shape
45 Degrees Elbow
Compatible Tube Material
Copper
Compatible Copper Tube Type
Type K, Type L, Type M
Operating Temperature - Maximum
250 Degrees F
Operating Temperature - Minimum
0 Degrees F
Fitting Material
Copper
Fitting Side 2 Connection Type
Press-fit
Operating Pressure - Maximum
300 psi
Material Grade
C12200
Connector Type
Coupling
Description
Press Copper 45-Degree Elbow, Fitting Material Copper, Material Grade C12200, O-Ring Material EPDM, Flange Outside Diameter Not Applicable, Number of Bolt Holes Not Applicable, Flange Thickness Not Applicable, Bolt Hole Diameter Not Applicable, Standards ASME B16.18, ASME B16.22, ASME B16.26, ASTM B88, cUPC, IAPMO/ANSI Z1117, IAPMO/ANSI Z1157, NSF/ANSI 372, NSF/ANSI 61, Color Copper, Compatible Copper Tube Type Type K, Type L, Type M, Compatible Tool Brand Quick Fitting
