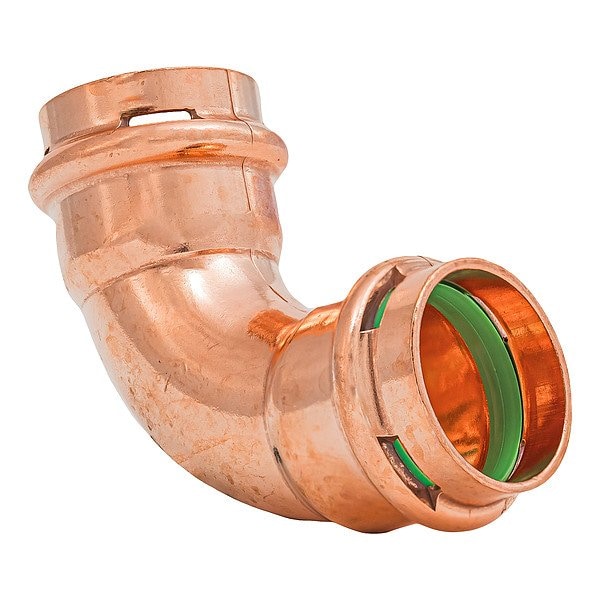

Elbow, Copper, Press-fit1", Press-fit1"
Mfr # SPWE33R
Zoro # G216244943
product price:Â
$
6.29
/ea
Key Features
Standards
ASME B16.18, ASME B16.22, ASME B16.26, ASTM B88, cUPC, IAPMO/ANSI Z1117, IAPMO/ANSI Z1157, NSF/ANSI 372, NSF/ANSI 61
Material Grade
C12200
Compatible Tool Brand
Quick Fitting
Fitting Side 2 Connection Type
Press-fit
Fitting Side 1 Connection Type
Press-fit
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- SPWE33R
- Zoro #
- G216244943
- UPC #
- 845526027847
- Country of Origin
- Viet Nam
Dimensions
- Fitting Side 1 Tube Outer Diameter
- 1 1/8 in
- Fitting Side 1 Copper Tube Size
- 1 in
- Fitting Side 2 Tube Outer Diameter
- 1 1/8 in
- Fitting Side 2 Copper Tube Size
- 1 in
Details
- Item
- Press Copper 90-Degree Elbow
- Standards
- ASME B16.18, ASME B16.22, ASME B16.26, ASTM B88, cUPC, IAPMO/ANSI Z1117, IAPMO/ANSI Z1157, NSF/ANSI 372, NSF/ANSI 61
- Material Grade
- C12200
- Compatible Tool Brand
- Quick Fitting
- Fitting Side 2 Connection Type
- Press-fit
- Fitting Side 1 Connection Type
- Press-fit
- O-Ring Material
- EPDM
- Operating Temperature - Maximum
- 250 Degrees F
- Color
- Copper
- Fitting Material
- Copper
- Operating Pressure - Maximum
- 300 psi
- Compatible Tube Material
- Copper
- For Media Type
- Potable Water
- Compatible Copper Tube Type
- Type K, Type L, Type M
- Operating Temperature - Minimum
- 0 Degrees F
- Fitting Shape
- 90 Degrees Elbow
- Connector Type
- Coupling
Description
Press Copper 90-Degree Elbow, Fitting Material Copper, Material Grade C12200, O-Ring Material EPDM, Flange Outside Diameter Not Applicable, Number of Bolt Holes Not Applicable, Flange Thickness Not Applicable, Bolt Hole Diameter Not Applicable, Standards ASME B16.18, ASME B16.22, ASME B16.26, ASTM B88, cUPC, IAPMO/ANSI Z1117, IAPMO/ANSI Z1157, NSF/ANSI 372, NSF/ANSI 61, Color Copper, Compatible Copper Tube Type Type K, Type L, Type M, Compatible Tool Brand Quick Fitting
