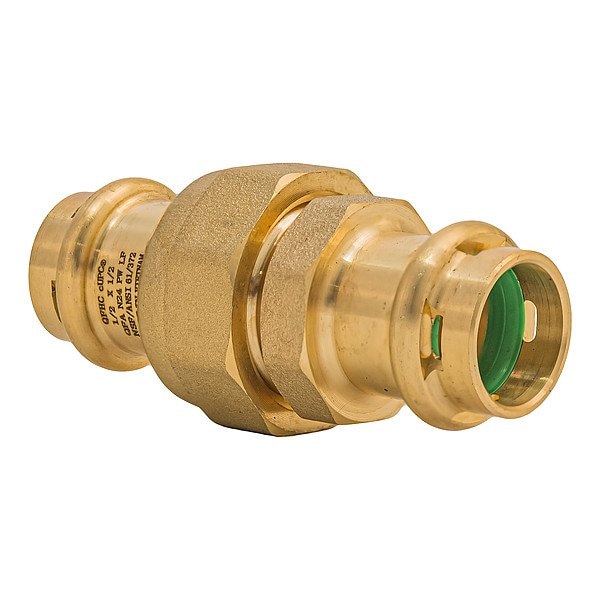

Strt, Brass, Press-fit1/2", Press-fit1/2"
Mfr # SPWU11R
Zoro # G816498326
product price:Â
$
7.85
/ea
Key Features
Connector Type
Union
Operating Temperature - Maximum
250 Degrees F
For Media Type
Potable Water
Standards
ASME B16.18, ASME B16.22, ASME B16.26, ASTM B88, cUPC, IAPMO/ANSI Z1117, IAPMO/ANSI Z1157, NSF/ANSI 372, NSF/ANSI 61
Fitting Side 2 Tube Outer Diameter
5/8 in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- SPWU11R
- Zoro #
- G816498326
- UPC #
- 845526027489
- Country of Origin
- Viet Nam
Dimensions
- Fitting Side 2 Tube Outer Diameter
- 5/8 in
- Fitting Side 1 Copper Tube Size
- 1/2 in
- Fitting Side 1 Tube Outer Diameter
- 5/8 in
- Fitting Side 2 Copper Tube Size
- 1/2 in
Details
- Item
- Crimp Union Fitting
- Connector Type
- Union
- Operating Temperature - Maximum
- 250 Degrees F
- For Media Type
- Potable Water
- Standards
- ASME B16.18, ASME B16.22, ASME B16.26, ASTM B88, cUPC, IAPMO/ANSI Z1117, IAPMO/ANSI Z1157, NSF/ANSI 372, NSF/ANSI 61
- Operating Temperature - Minimum
- 0 Degrees F
- Compatible Tube Material
- Copper
- Fitting Material
- Brass
- Compatible Copper Tube Type
- Type K, Type L, Type M
- Fitting Side 1 Connection Type
- Press-fit
- Compatible Tool Brand
- Quick Fitting
- Operating Pressure - Maximum
- 300 psi
- O-Ring Material
- EPDM
- Fitting Shape
- Straight
- Material Grade
- C46500
- Fitting Side 2 Connection Type
- Press-fit
Description
Crimp Union Fitting, Fitting Material Brass, Material Grade C46500, O-Ring Material EPDM, Flange Outside Diameter Not Applicable, Number of Bolt Holes Not Applicable, Flange Thickness Not Applicable, Bolt Hole Diameter Not Applicable, Standards ASME B16.18, ASME B16.22, ASME B16.26, ASTM B88, cUPC, IAPMO/ANSI Z1117, IAPMO/ANSI Z1157, NSF/ANSI 372, NSF/ANSI 61, Compatible Copper Tube Type Type K, Type L, Type M, Compatible Tool Brand Quick Fitting, Compatible Tube Hardness Not Applicable
