  11. Cord Connector, 2-3/4" L, 1/2" Conduit

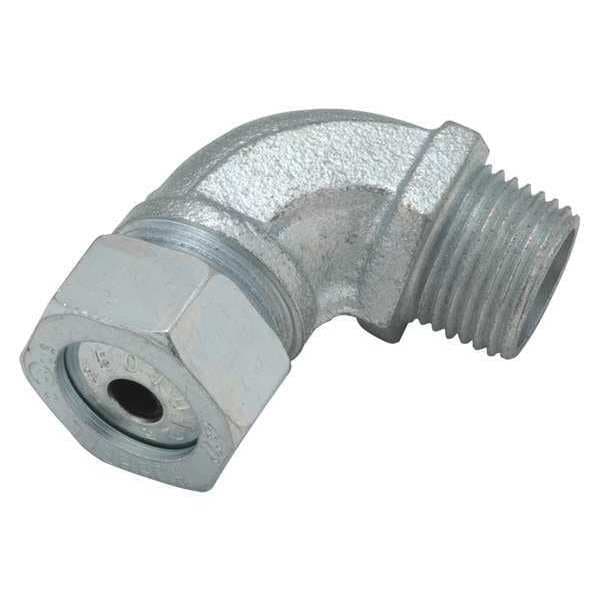

Raco Cord Connector, 2-3/4" L, 1/2" Conduit 3794-3 - main

Cord Connector, 2-3/4" L, 1/2" Conduit

  • Mfr # 3794-3

  • Zoro # G5490180

product price: $14.35
/ea

Key Features

Hub Size
1/2 in MNPT
Material
Iron
Color
Silver
Length
2-3/4"
Standards
cULus
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
3794-3
Zoro #
G5490180
UPC #
050169983270
Country of Origin
China

Dimensions

Hub Size
1/2 in MNPT
Length
2-3/4"
Length - Box to End of Connector
1 1/4 in
Conduit Size
1/2"
Length - External Strain Relief
No External Strain Relief
Cord Dia. Range
0.45 in to 0.56 in
Thread Size
1/2 in
Compatible Conduit Trade Size
1/2 in
Width
1.250 in
Size
2.75 in x 1.25 in x 1.25 in
Dimensions
2.75 in x 1.25 in x 1.25 in
Each - Width
1.250 in
Height
1.25 in
Trade Size
0.5 in

Details

Item
Enhanced Rating Cord Connector
Material
Iron
Color
Silver
Standards
cULus
Insulated
No
Gland Color Code
Green
Number of Cords
1
Style - Connector
90 Degrees
Strain Relief Type
No External Strain Relief
Body Color - Cord Connector
Silver
Box Connection
1/2 in MNPT
Material - External Strain Relief
No External Strain Relief
Material - Cord Connector
Malleable Iron
Connector Type
Straight
Hazardous Location Rating
Class I, Division 2, Class II, Division 1 & 2, Class III, Division 1 & 2
Item - Cord Connector
Enhanced Rating Cord Connector
NEMA Rating
NEMA 4
Body Material
Iron
Liquid Tight
Yes
For Maximum Cable OD
0.56 in
Connection Orientation
90 Degrees
Resistance Properties
Corrosion Resistant
Thread Type
NPT Thread
For Minimum Cable OD
0.45 in
Environmental Rating
Liquid Tight
Grommet Color Code
Green
Collar Material
Iron
Grommet Material
Neoprene
Body Color
Silver
Cable Range
.45 - .56 in
Application
For use in wet or dry locations to provide a liquidtight and strain relief termination for flexible cord and cable;RACO liquidtight strain relief cord connectors are suitable for use in Class I, Div. 2; Class II, Div. 1 & 2; and Class III, Div. 1 & 2 hazardous locations
Certified Listed
cULus Listed
Standard
cULus Listed
Features
Malleable iron construction provides mechanical strength and durability; Neoprene grommets are color-coded by cable diameter allowing for quick and easy identification; Metallic components are zinc plated for corrosion protection; Unique grommet design is forced up and around the cord when the nut is tightened creating a liquidtight seal; Time saving and easy installation - no need to disassemble the fitting for cord installation; Additional colors and sizes available

Description

Enhanced Rating Cord Connector, Cord Dia. Range 0.45 in to 0.56 in, Box Connection 1/2 in MNPT, Material - Cord Connector Malleable Iron, External Strain Relief Material No External Strain Relief, Gland Color Code Green, Body Color - Cord Connector Silver, Number of Cords 1, Style - Connector 90 Degrees , Strain Relief Type No External Strain Relief, Length - Box to End of Connector 1 1/4 in, Insulated No, Standards cULus
