Raytek

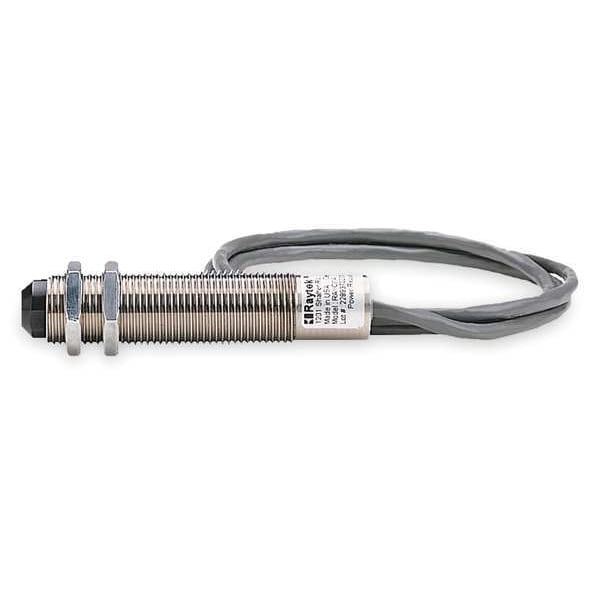

Fixed Mount IR Temp. Sensor, 212 to 932F

Raytek Fixed Mount IR Temp. Sensor, 212 to 932F RAYCI3B10L
Hover or click to zoom Tap to zoom
$417.74
  • Promotion Restriction: Not eligible for promotion
  • Item: Fixed Mount Infrared Temperature Sensor
  • Response Time: 350ms
See full product details
This item ships free.

Total: $417.74

Raytek #RAYCI3B10L Specifications

  • Promotion Restriction: Not eligible for promotion
  • Item: Fixed Mount Infrared Temperature Sensor
  • Response Time: 350ms
  • Sensor Power Source: 12 to 24V DC
  • Sensor Current Rating: 20mA
  • Sensor Measurement Temp. Range: 212 Degrees to 932 Degrees F
  • Thread Size: 3/4-16 UNF
  • Sensor Length: 3.5 in
  • Repeatability: +/-1% of Measured Value or +/-2 Degrees F, Whichever Is Greater
  • Sensor Spot Size and Distance: 1.00 in @ 4 in
  • Ambient Temp. Range: 32 Degrees to 160 Degrees F
  • Dia.: 0.75 in
  • Loop Resistance: 50 kilohm
  • Sensor Output Type: 0 to 5V DC
  • Sensor Emissivity: 0.95
  • Sensor Item: Fixed Mount Infrared Temperature Sensor
  • Sensor Cable Length: 10 ft
  • Impedance: 50 ohm
  • Sensor Measurement Temp. Range`: 212 Degrees to 932 Degrees F
  • Includes: (2) Mounting Nuts and Instructions
  • Environmental Applications: IP 65 (NEMA-4)
  • Spectral Response: 8 to 14um
  • Sensor Accuracy: +/-2.0%
  • Manufacturers Warranty Length: 2 yr
  • Country of Origin (subject to change): China

Description

Fixed Mount Infrared Temperature Sensor, Sensor Output Type 0 to 5V DC, Sensor Power Source 12 to 24V DC, Sensor Spot Size and Distance 1.00 in @ 4 in, Sensor Emissivity 0.95, Sensor Measurement Temp. Range 212 Degrees to 932 Degrees F, Sensor Accuracy +/-2.0 Percent, Sensor Cable Length 10 ft, Sensor Current Rating 20mA, Impedance 50 ohm, Loop Resistance 50 kilohm, Spectral Response 8 To 14uM, Ambient Temp. Range 32 Degrees to 160 Degrees F, Response Time 350ms
