Shop REED INSTRUMENTS

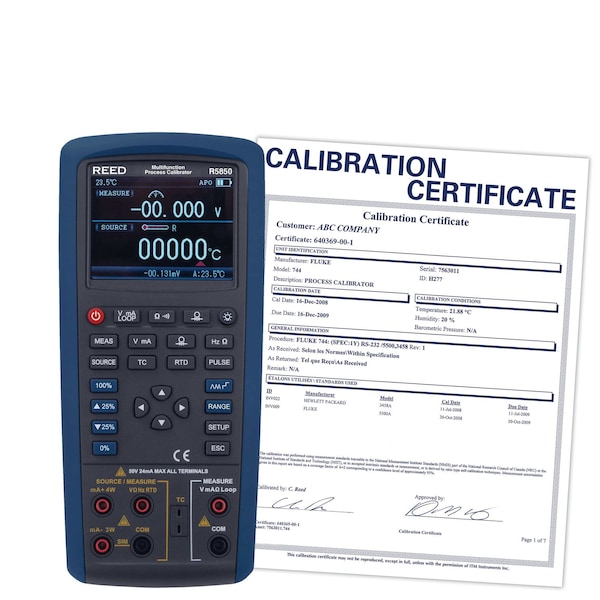

Multifunction Process Calibrator, 100 kHz

  • Mfr # R5850-NIST

  • Zoro # G710871720

product price:
$
3,314.99
/ea
Free Shipping & Returns

Key Features

Includes
Carrying Case, Power Adapter, Test Clips, Test Leads, Type K Thermocouple Wire Probe, USB Cable
Standards
CE, RoHS
Interface
USB
Loop Supply Voltage
24 V DC
RTD Type
Cu10, Cu100 (2-Wire/3-Wire), Cu100 (4-Wire), Cu50 (2-Wire/3-Wire), Cu50 (4-Wire), Ni120 (2-Wire/3-Wire), Ni120 (4-Wire), Pt100 (2-Wire/3-Wire), Pt100 (4-Wire), Pt100-392 (2-Wire/3-Wire), Pt100-392 (4-Wire), Pt100-JIS (2-Wire/3-Wire), Pt100-JIS (4-Wire), Pt1000 (2-Wire/3-Wire), Pt1000 (4-Wire), Pt200 (2-Wire/3-Wire), Pt200 (4-Wire), Pt500 (2-Wire/3-Wire), Pt500 (4-Wire)
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
R5850-NIST
Zoro #
G710871720
UPC #
800837006639
Country of Origin
China
Item
Multifunction Calibrator
Includes
Carrying Case, Power Adapter, Test Clips, Test Leads, Type K Thermocouple Wire Probe, USB Cable
Standards
CE, RoHS
Interface
USB
Loop Supply Voltage
24 V DC
RTD Type
Cu10, Cu100 (2-Wire/3-Wire), Cu100 (4-Wire), Cu50 (2-Wire/3-Wire), Cu50 (4-Wire), Ni120 (2-Wire/3-Wire), Ni120 (4-Wire), Pt100 (2-Wire/3-Wire), Pt100 (4-Wire), Pt100-392 (2-Wire/3-Wire), Pt100-392 (4-Wire), Pt100-JIS (2-Wire/3-Wire), Pt100-JIS (4-Wire), Pt1000 (2-Wire/3-Wire), Pt1000 (4-Wire), Pt200 (2-Wire/3-Wire), Pt200 (4-Wire), Pt500 (2-Wire/3-Wire), Pt500 (4-Wire)
Thermocouple Type
B, BP, E, J, K, L, N, R, S, T, U, XK
Basic DC Accuracy
+/-(0.02% +2)
Frequency Measurement - Minimum
1 Hz
Loop Current - Maximum
24 mA
Frequency Measurement - Maximum
100 kHz
Calibration Certificate Type
NIST
Resistance Measurement - Minimum
10 ohm
Resistance Measurement - Maximum
5,000 ohm
Digital Display Screen Type
TFT LCD
Voltage Measurement - Maximum
50 V
Source Voltage - Minimum
0.001 V
Thermocouple Temperature - Minimum
-148 Degrees F
Current Measurement - Maximum
24 mA
Parameters Sourced
DC Current, DC Voltage, Frequency, Pressure, Resistance, RTD, TC
CAT Safety Rating
CAT II 1000V, CAT III 1000V, CAT IV 600V
Source Current - Maximum
20 mA
RTD Temperature - Maximum
1,562 Degrees F
RTD Temperature - Minimum
-328 Degrees F
Source Current - Minimum
0 mA
Parameters Measured
DC Current, DC Voltage, Frequency, Pressure, Resistance, RTD, TC
Number of Batteries Required
1
Source Frequency - Minimum
3 Hz
Source Frequency - Maximum
100 kHz
Thermocouple Temperature - Maximum
2,501.6 Degrees F
Battery Chemistry
Lithium
Intrinsic Safety
Not Specified Intrinsically Safe
Includes Batteries
Batteries Included
Current Measurement - Minimum
0 mA
Source Voltage - Maximum
10 V
Voltage Measurement - Minimum
0.001 V

Description

Multifunction Calibrator, Loop Supply Voltage 24 V DC, Basic DC Accuracy +/-(0.02 Percent +2), Includes Carrying Case, Power Adapter, Test Clips, Test Leads, Type K Thermocouple Wire Probe, USB Cable, Standards CE, RoHS, Interface USB, Manufacturers Warranty Length 2 yr
