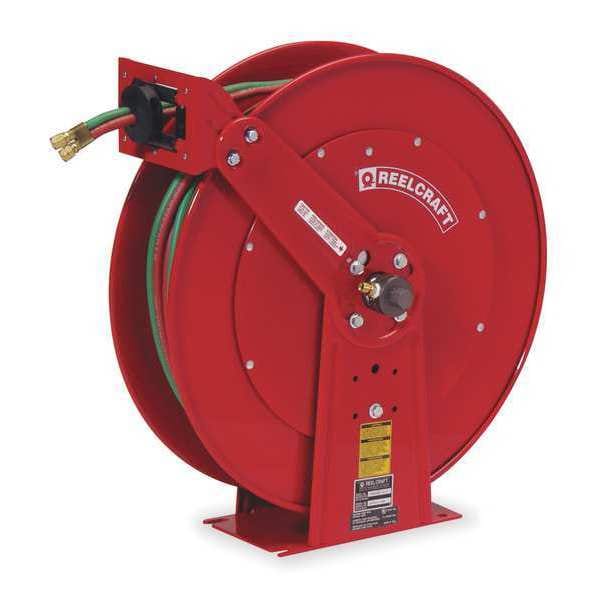

Reelcraft Reel, Hose, 13 In TW84000 OLPT - main

Reel, Hose, 13 In

  • Mfr # TW84000 OLPT

  • Zoro # G3205221

product price: $858.99
/ea
Free Shipping & Returns

Key Features

Max. Pressure
200 psi
Hose Inside Dia.
1/4 in
Hose Length
100 ft
Drive Type
Spring Return
Seal Type
Nitrile
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TW84000 OLPT
Zoro #
G3205221
UPC #
699567010890
Country of Origin
United States

Dimensions

Hose Inside Dia.
1/4 in
Hose Length
100 ft
Overall Width
12 1/4 in
Overall Height
25 3/8 in
Overall Length
24 in
Mount Base Height
12 in
Mounting Hole Center to Center Width
6 in
Mount Hole Diameter
1/2 in
Swivel Outlet Thread Size
9/16 in - 18
Mount Base Width
7 3/8 in
Reel Width
12 1/4 in
Mounting Hole Center to Center Height
10 in
Swivel Outlet Size
9/16 in
Reel Diameter
24 in
Swivel Inlet Thread Size
9/16 in - 18
Overall Dimensions
24 in L x 12 1/4 in W x 25 3/8 in H
Swivel Inlet Size
9/16 in

Details

Max. Pressure
200 psi
Drive Type
Spring Return
Seal Type
Nitrile
Welding Hose Grade
T
Latch
Locking
(F)NPT Reel Inlet (In.)
1/4 in
Bearings
Permanently Lubricated
For Use With
Acetylene, Mapp, Natural And Other Fuel Gases, Propane
Meets/Exceeds
R.M.A. and C.G.A. Type V.D. Specifications
Hose Outlet
9/16 in UNF
Hose Included
No
Thread
9/16"-18 NPTF
Hose Grade
T
Mounting
Bench or Truck, Ceiling, Floor, Wall
Item
Welding Hose Reel
Max. Temp.
250 Degrees F
Swivel Material
Aluminum
Includes
No
Weight
81 lb
Features
Leak Prevention, Double Sealed Special Molded O-Rings Prevent Leakage, T-Grade Capability
Standards
C.G.A., R.M.A., Type V.D., UL Listed
Reel Material
Steel
Swivel Inlet Type
UNF
Hose Capacity
100 ft (1/4 in ID)
Includes Leader Hose
No
Enclosed
No
Includes Hose
No
Maximum Operating Pressure
200 psi
Minimum Operating Temperature
-40 Degrees F
Minimum Operating Pressure
0 psi
Hose Reel Primary Application
Welding
Reel Color
Red
Maximum Operating Temperature
150 Degrees F
Base Motion Type
Stationary
Latch Type
Locking
Hose Reel Type
Vehicle Mount Hose Reel, Wall Mount Hose Reel
Reel Finish
Powder Coated
Fasteners Included
No
For Dual Hose
Yes
Bearing Construction
Ball
Swivel Outlet Type
UNF
Speed Limited Retraction
No

Description

Welding Hose Reel, Welding, Hose Grade T, 200 psi, Hose Capacity 100 ft (1/4 in ID), Drive Type Spring Return, For Dual Hose Yes, Hose Reel Type Vehicle Mount Hose Reel, Wall Mount Hose Reel, Includes Hose No
