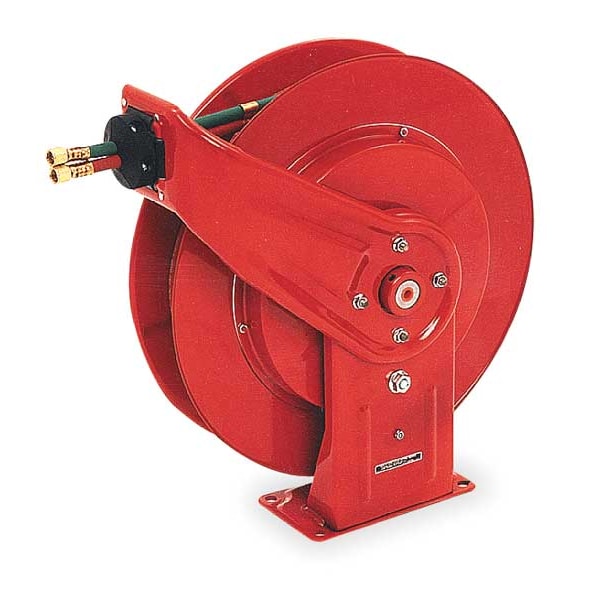

Reel, Twin Hose, 7 In
Mfr # TW7450 OLPT
Zoro # G1809351
product price: $611.99
/ea
Free Shipping & Returns
Key Features
Max. Pressure
200 psi
Hose Inside Dia.
1/4 in
Hose Length
50 ft
Latch
Locking
Max. Temp.
150 Degrees F
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
TW7450 OLPT
Zoro #
G1809351
UPC #
699567010883
Country of Origin
United States
Dimensions
Hose Inside Dia.
1/4 in
Hose Length
50 ft
Overall Height
20 1/4 in
Overall Length
19 3/4 in
Overall Width
7 3/8 in
Mounting Hole Center to Center Width
3 7/8 in
Hose 2 Fitting B Size
9/16 in
Hose 2 Fitting A Size
9/16 in
Swivel Inlet Size
1/4 in
Mount Base Height
9 in
Mount Base Width
5 in
Overall Dimensions
19 3/4 in L x 7 3/8 in W x 20 1/4 in H
Hose 2 Length
50 ft
Hose 2 Inside Diameter
1/4 in
Hose 1 Length
50 ft
Swivel Outlet Thread Size
9/16 in - 18
Hose 1 Fitting A Size
9/16 in
Mounting Hole Center to Center Height
3 7/8 in
Reel Width
7 3/8 in
Reel Diameter
9 in
Hose 2 Outside Diameter
1/2 in
Fitting Size
9/16 in x 9/16 in
Hose 1 Inside Diameter
1/4 in
Hose 1 Outside Diameter
1/2 in
Mount Hole Diameter
1/2 in
Swivel Outlet Size
9/16 in
Hose 1 Fitting B Size
9/16 in
Swivel Inlet Thread Size
1/4 in - 18
Description
Reelcraft’s Series TW spring retractable gas welding hose reels have an independent dual swivel body manufactured from aluminum and hard coated for wear resistance. This unique design assures positive separation of gases. Double-sealed, special molded O-rings prevent leakage. Swivel body and inlet are both permanently identified with machined grooves on the acetylene side to assure proper installation.
•Leak prevention – The double sealed, special molded o-rings prevent leakage. The swivel inlets are both permanently identified with machined grooves on the gas side to assure proper installation.
•Quality finish and corrosion resistant – Individually powder coated components offer the maximum protection from premature corrosion.
•Reinforced steel – The robotically welded steel base offers maximum strength and consistent quality.
•Independent dual swivel body manufactured from aluminum and hard-coated for wear resistance assures positive separation of gases due to its unique design.
