  10. /
  11. FRL, 3/4 In. NPT, 186 cfm, 150 psi
Shop All Filter, Regulator, Lubricator
Speedaire

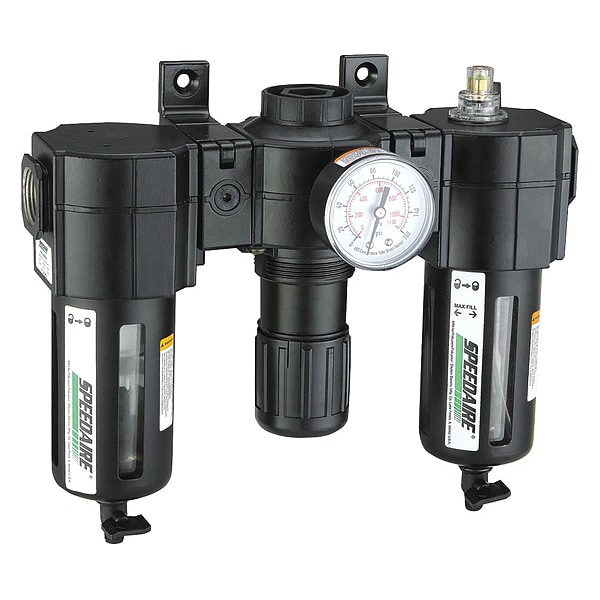

FRL, 3/4 In. NPT, 186 cfm, 150 psi

original price: $209.58
7% off
new price: $192.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Includes Guard, Mounting Brackets, Pressure Gauge
  • Pipe Size 3/4" NPT
  • Max. Pressure 150 psi
  • Bowl Size 7.0 oz.
  • Overall Height 8 13/16 in
See all product information

Product Information

Dimensions

Pipe Size 3/4" NPT
Bowl Size 7.0 oz.
Overall Height 8 13/16 in
Connection Size - Air Treatment 3/4 in NPT
Overall Width 10 1/2 in
Bowl Size - Air Treatment 7.0 oz
Air Inlet Size 3/4 in
Air Outlet Size 3/4 in

Details

Item Filter/Regulator/Lubricator
Includes Guard, Mounting Brackets, Pressure Gauge
Max. Pressure 150 psi
Number of Pieces 3
Drain Type Manual
Filter Rating 5 micron
Lubricator Type Included Mist
Bowl Material - Air Treatment Polycarbonate with Guard
Max. Flow 186 cfm
Number of Pieces - Air Treatment 3
Max. Flow - Air Treatment 186 cfm
Max. Incoming Pressure - Air Treatment 150 psi
Max. Temp. 175 Degrees F
Adjustment Range 5 to 150 psi
Filter Rating - Air Treatment 5 micron
Adjustment Range - Air Treatment 5 to 150 psi
Item - FRL Filter/Regulator/Lubricator
Bowl Material Polycarbonate with Guard
Drain Included Yes
Oil Capacity 7 oz
Lubricator Bowl Material Polycarbonate
Air Outlet Type NPT
Duty Rating Standard Duty
Air Inlet Type NPT
Maximum Operating Pressure 150 psi
For Substance Type Air
Filter Bowl Guard Included Yes
Filter Bowl Material Plastic
Maximum Regulated Pressure 150 psi
Minimum Regulated Pressure 5 psi
Lubricator Bowl Capacity 7 oz
Filter Bowl Capacity 7 oz
Number of Air Inlets 1
Number of Air Outlets 1
Lubricator Bowl Guard Included Yes
Maximum Operating Temperature 175 Degrees F
Lubricator Type Mist
For Fluid Type Air
Maximum Flow Rate 186 cfm
Type 3 Piece Modular Combination

Description

Filter/Regulator/Lubricator, Air Inlet Size 3/4 in, Air Inlet Type NPT, Maximum Flow Rate 186 cfm, Maximum Operating Pressure 150 psi, Filter Rating 5 micron, Filter Bowl Material Polycarbonate, Filter Bowl Capacity 7 oz, Lubricator Bowl Capacity 7 oz, Drain Type Manual, Overall Width 10 1/2 in, Air Outlet Size 3/4 in, Air Outlet Type NPT, Drain Included Yes, Duty Rating Standard Duty, Filter Bowl Guard Included Yes
