  11. Air Motor, 0.93 HP, 30 cfm, 3000 rpm
Shop All Air Motors
Speedaire

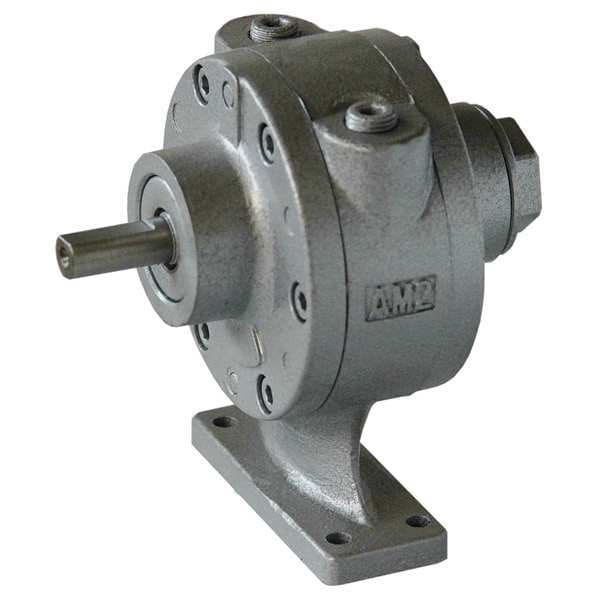

Air Motor, 0.93 HP, 30 cfm, 3000 rpm

product price: $182.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Running Torque @ Max. Pressure 19.5 in-lb
  • Max. Air Flow 30 cfm
  • HP 0.93 hp
  • No Load RPM 6,000 RPM
  • Shaft Dia. 1/2 in
See all product information

Product Information

Dimensions

Shaft Dia. 1/2 in
Port Size 1/4 in NPT
Overall Length 5 in
Overall Width 3 3/4 in
Overall Height 5 3/8 in
Shaft Length 1 1/8 in
Outside Diameter 4 in
Inlet Size 1/4 in
Manufacturers Warranty Length 1 yr
Shaft Diameter 1/2 in

Details

Item Air Motor
Running Torque @ Max. Pressure 19.5 in-lb
Max. Air Flow 30 cfm
HP 0.93 hp
No Load RPM 6,000 RPM
Mounting Foot
Rotation CW/CCW
Operating Temp. Range 0 Degrees to 250 Degrees F
Max. Air Pressure 100 psi
RPM @ Max. Torque 350 RPM
Housing Material Aluminum, Cast Iron
Finish Gray
Mount Type Foot
Includes Muffler
Weight 5.07 lb
Air Consumption 30 cfm
Minimum Operating Pressure 1.4 bar
Speed @ Maximum Torque 350 RPM
Inlet Gender Female
Shaft Material Grade 40Cr
System of Measurement Inch
Mounting Orientation Any Angle
Air Inlet Center to Center Distance 2 1/2 in
Shaft Material Steel
Air Inlet Type NPT
Output Power @ Maximum Speed 0.93 hp
Maximum Torque 19.5 in-lb
Nameplate Speed 350 RPM
No Load Speed 3,000 RPM
Housing Material Finish Painted
Maximum Flow Rate 30 cfm
Minimum Flow Rate 2.53 cfm
Minimum Ambient Temperature 0 Degrees F
Maximum Operating Pressure 100 psi
Maximum Ambient Temperature 250 Degrees F
Motor Frame Material Cast Iron
Shaft Orientation Inline
Number of Vanes 4

Description

Air Motor, Output Power @ Maximum Speed 0.93 hp, Maximum Torque 19.5 in-lb, No Load Speed 3,000 RPM, Maximum Flow Rate 30 cfm, Shaft Diameter 1/2 in, Shaft Length 1 1/8 in, Mount Type Foot, Inlet Size 1/4 in, Air Inlet Type NPT, Rotation CW/CCW, Housing Material Aluminum, Cast Iron, Shaft Material Grade 40Cr, Bearing Protection Not Applicable, Maximum Operating Pressure 100 psi, Includes Muffler, Keyway Width Not Applicable, Weight 5.07 lb, Housing Material Grade Not Applicable
