Shop REELCRAFT

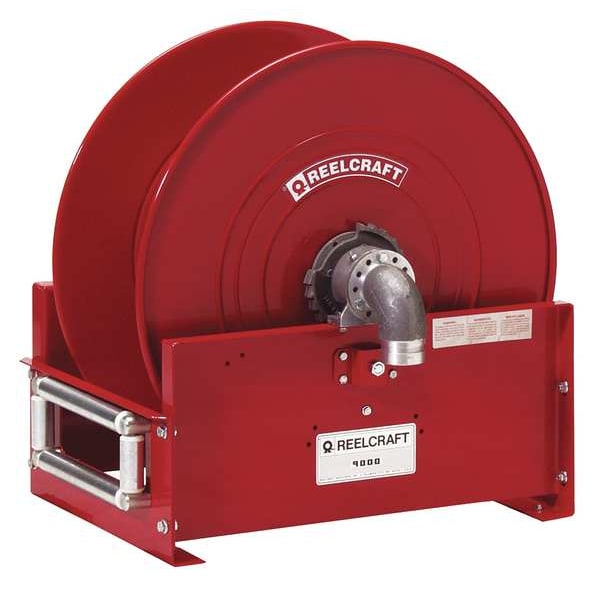

Spring Return Hose Reel, 1 1/2 in Hose Diameter, 50 ft Length, 600 psi Max. Pressure, Aluminum, Red

  • Mfr # FF9600 OLPBW

  • Zoro # G1362672

product price:  $1,319.99
/ea
Additional $125.00 delivery surcharge applies per item.
See details

Key Features

Max. Pressure
600 psi
Drive Type
Spring Return
Enclosed
No
Hose Inside Dia.
1 1/2 in
Hose End Configuration
1-1/2 in (F)NPT
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
FF9600 OLPBW
Zoro #
G1362672
UPC #
699567010210
Country of Origin
United States

Dimensions

Hose Inside Dia.
1 1/2 in
Overall Height
26 3/8 in
Hose Length
50 ft
Overall Width
19 9/16 in
Overall Length
26 1/4 in
Reel Diameter
10 1/2 in
Hose Outside Dia.
2.000"
Height
26 1/4 in
Width
21 1/2 in
Length
26 1/4 in
Reel Width
19 5/8 in
Mount Base Width
17 5/8 in
Swivel Outlet Size
1 1/2 in
Mounting Hole Center to Center Width
22 1/4 in
Mount Hole Diameter
7/16 in
Swivel Inlet Size
1 1/2 in
Swivel Outlet Thread Size
1 1/2 in - 11 1/2
Mounting Hole Center to Center Height
13 1/2 in
Mount Base Height
24 1/8 in
Swivel Inlet Thread Size
1 1/2 in - 11 1/2
Overall Dimensions
26 1/4 in L x 19 9/16 in W x 26 3/8 in H

Details

Item
Spring Return Hose Reel
Max. Pressure
600 psi
Drive Type
Spring Return
Enclosed
No
Hose End Configuration
1-1/2 in (F)NPT
Mounting
Bench and Truck, Ceiling, Floor, Wall
Reel Color
Red
Features
Heavy Duty Fuel or Water
Media - Hose Reels
Air
Application
Air, Water and Fuel
Swivel Material
Aluminum
Latch
Locking
Housing Material
Steel
Reel Inlet
1-1/2 in (M)NPT
Bearings
Permanently Lubricated
Max. Temp.
150 Degrees F
Hose Outlet
1-1/2 in (F)NPT
Seal Type
Nitrile
Duty Rating
Heavy Duty
Finish - Hose Reels
Powder Coated
Weight
135 lb
Hose Reel Type
Free Standing Hose Reel, Vehicle
For Dual Hose
No
Reel Material
Steel
Reel Finish
Powder Coated
Swivel Outlet Type
NPT
Hose Reel Primary Application
Fuel
Swivel Inlet Gender
Female
Swivel Outlet Gender
Female
Maximum Operating Pressure
600 psi
Fasteners Included
No
Speed Limited Retraction
No
Base Motion Type
Stationary
Swivel Inlet Type
NPT
Includes Hose
No
Hose Capacity
50 ft (1 1/2 in I.D.)
Twin Hose Compatible
No
Pedestal Type
Dual Pedestal
Bearing Construction
Dual Needle
Maximum Operating Temperature
210 Degrees F
Minimum Operating Temperature
-40 Degrees F
Includes Leader Hose
No
Number of Mount Holes
4
Latch Type
Spring Loaded
Corrosion-Resistant
Yes
Type
General Industrial, Low Pressure, Auto Retractable

Description

Spring Return Hose Reel, Fuel, Maximum Operating Pressure 600 psi, Hose Capacity 50 ft (1 1/2 in I.D.), Drive Type Spring Return, Corrosion-Resistant Yes, Enclosed No, For Dual Hose No, Hose Reel Type Free Standing Hose Reel, Vehicle, Includes Hose No, Mounting Location Bench, Floor, Truck, Pedestal Type Dual Pedestal, Overall Height 26 3/8 in, Overall Length 26 1/4 in, Overall Width 19 9/16 in, Reel Material Steel, Reel Finish Powder Coated, Speed Limited Retraction No, Reel Color Red
