Shop REELCRAFT

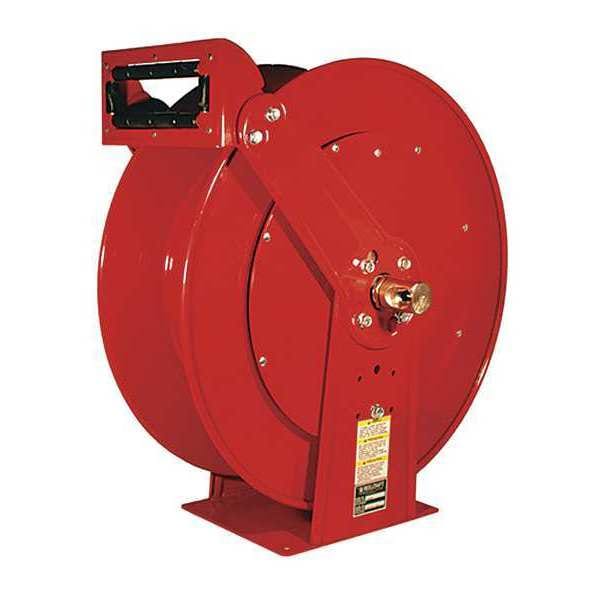

Spring Return Hose Reel, 3/4 in Hose Diameter, 75 ft Length, 250 psi Max. Pressure, Red

  • Mfr # FD83000 OLP

  • Zoro # G0484757

product price:  $879.99
/ea
Free Shipping & Returns

Key Features

Max. Pressure
250 psi
Drive Type
Spring Return
Enclosed
No
Hose Inside Dia.
3/4 in
Hose End Configuration
3/4 in (F)NPT
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
FD83000 OLP
Zoro #
G0484757
UPC #
699567010173
Country of Origin
United States

Dimensions

Hose Inside Dia.
3/4 in
Overall Height
25 3/8 in
Hose Length
75 ft
Overall Width
13 in
Overall Length
24 in
Reel Diameter
15 1/2 in
Hose Outside Dia.
1.188"
Reel Width
13 in
Height
25 3/8 in
Length
24 in
Width
14 1/4 in
Swivel Outlet Thread Size
3/4 in - 14
Overall Dimensions
24 in L x 13 in W x 25 3/8 in H
Mount Base Width
9 3/8 in
Mount Hole Diameter
1/2 in
Mount Base Height
12 in
Swivel Inlet Thread Size
3/4 in - 14
Swivel Inlet Size
3/4 in
Mounting Hole Center to Center Height
10 1/2 in
Mounting Hole Center to Center Width
7 7/8 in
Swivel Outlet Size
3/4 in
Wire Rope Length
24 in

Details

Item
Spring Return Hose Reel
Max. Pressure
250 psi
Drive Type
Spring Return
Enclosed
No
Hose End Configuration
3/4 in (F)NPT
Mounting
Ceiling, Floor, Truck, Wall
Reel Color
Red
Media - Hose Reels
Fuel
Application
Fuel
Swivel Material
Nickel Plated Steel
Finish - Hose Reels
Powder Coated
Bearings
Permanently Lubricated
Hose Outlet
3/4 in (M)NPT
Max. Temp.
150 Degrees F
Seal Type
Viton(R)
Duty Rating
Heavy Duty
Reel Inlet
3/4 in (F)NPT
Housing Material
Steel
Weight
82 lb
Swivel Inlet Gender
Female
For Dual Hose
No
Includes Hose
No
Twin Hose Compatible
No
Speed Limited Retraction
No
Includes Leader Hose
No
Maximum Operating Pressure
500 psi
Number of Mount Holes
4
Hose Reel Type
Free Standing Hose Reel, Vehicle, Wall Mount Hose Reel
Maximum Operating Temperature
210 Degrees F
Swivel Outlet Gender
Female
Swivel Outlet Type
NPT
Reel Finish
Powder Coated
Fasteners Included
No
Corrosion-Resistant
Yes
Hose Reel Primary Application
Fuel
Hose Capacity
75 ft (3/4 in I.D.)
Minimum Operating Temperature
-25 Degrees F
Bearing Construction
Ball
Number of Guide Arms
Double Arm
Pedestal Type
Dual Pedestal
Reel Material
Steel
Base Motion Type
Stationary
Latch Type
Spring Loaded
Swivel Inlet Type
NPT
Type
Low Pressure, Auto Retractable

Description

Spring Return Hose Reel, Fuel, Maximum Operating Pressure 500 psi, Hose Capacity 75 ft (3/4 in I.D.), Drive Type Spring Return, Corrosion-Resistant Yes, Enclosed No, For Dual Hose No, Hose Reel Type Free Standing Hose Reel, Vehicle, Wall Mount Hose Reel, Includes Hose No, Mounting Location Ceiling, Floor, Wall, Pedestal Type Dual Pedestal, Number of Guide Arms Double Arm, Overall Height 25 3/8 in, Overall Length 24 in, Overall Width 13 in, Reel Material Steel, Reel Finish Powder Coated
