Spring Return Hose Reel, 3/8 in Hose Diameter, 50 ft Length, 5,000 psi Max. Pressure, Red
Mfr # PW7650 OHP
Zoro # G9973013
product price:Â
$
666.99
/ea
Free Shipping & Returns
Key Features
Max. Pressure
5,000 psi
Drive Type
Spring Return
Enclosed
No
Includes
Hose; Bumper
Hose Inside Dia.
3/8 in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- PW7650 OHP
- Zoro #
- G9973013
- UPC #
- 699567016663
- Country of Origin
- United States
Dimensions
- Hose Inside Dia.
- 3/8 in
- Overall Height
- 20 1/4 in
- Hose Length
- 50 ft
- Overall Width
- 7 in
- Overall Length
- 19 3/4 in
- Reel Diameter
- 9 in
- Hose Outside Dia.
- 3/4 in
- Reel Width
- 7 in
- Width
- 7 in
- Length
- 19 in
- Height
- 20 1/4 in
- Mount Base Height
- 8 61/64 in
- Mount Hole Diameter
- 1/2 in
- Swivel Inlet Thread Size
- 1/2 in - 14
- Overall Dimensions
- 19 3/4 in L x 7 in W x 20 1/4 in H
- Mounting Hole Center to Center Height
- 7 13/16 in
- Swivel Inlet Size
- 1/2 in
- Swivel Outlet Size
- 1/2 in
- Hose Fitting B Size
- 1/4 in
- Mounting Hole Center to Center Width
- 3 7/8 in
- Fitting Size
- 1/4 in x 1/4 in
- Hose Fitting A Size
- 1/4 in
- Mount Base Width
- 4 61/64 in
- Swivel Outlet Thread Size
- 1/2 in - 14
- Wire Rope Length
- 19 3/4 in
Description

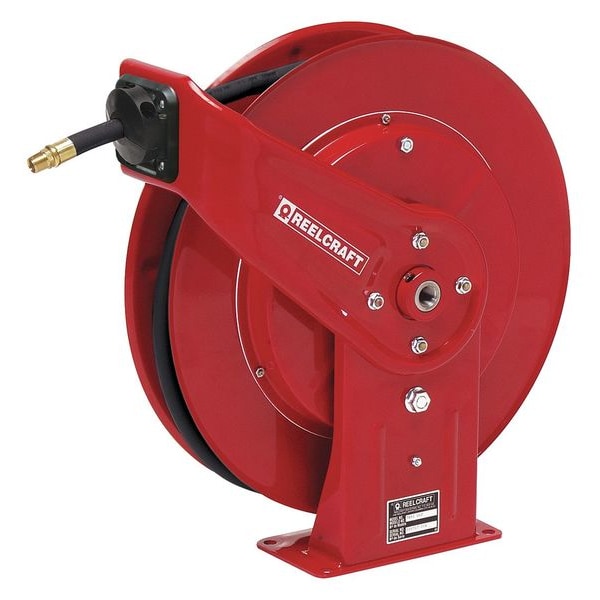

The REELCRAFT PW7650 OHP is a spring return hose reel for water service in pressure washer applications. It includes a 50 ft rubber hose with a 3/8 in inside diameter and supports stationary mounting on ceilings, floors, vehicles, or walls. The reel has a steel body with a powder-coated finish, a high-pressure water swivel, and is rated up to 5,000 psi, with a maximum operating pressure of 4,800 psi and a maximum operating temperature of 210 degrees F.
Key Features of the REELCRAFT PW7650 OHP Spring Return Hose Reel:
- Spring return drive: Retracts the hose automatically after use.
- High-pressure water swivel: Designed for a range of pressures, temperatures, and chemicals used with water service.
- Full flow stress-free swivel design: Hose is plumbed into the base to reduce stress on the swivel during operation.
- Hose included: Comes with a 50 ft synthetic rubber hose and hose stop.
- Fittings: 1/4 in NPT x 1/4 in NPT connections with 1/4 in male NPT hose end configuration.
- Reel inlet and outlet: 1/2 in FNPT reel inlet with nickel-plated steel swivel connections.
- Corrosion-resistant construction: Steel reel with powder-coated finish for added resistance to premature corrosion.
- Permanently lubricated bearings: Bearing construction is permanently lubricated.
- Mounting options: Can be mounted on a ceiling, floor, vehicle, or wall.
- Applications: Used for agricultural/marine work, equipment cleaning, and pressure washing.
