Shop REES

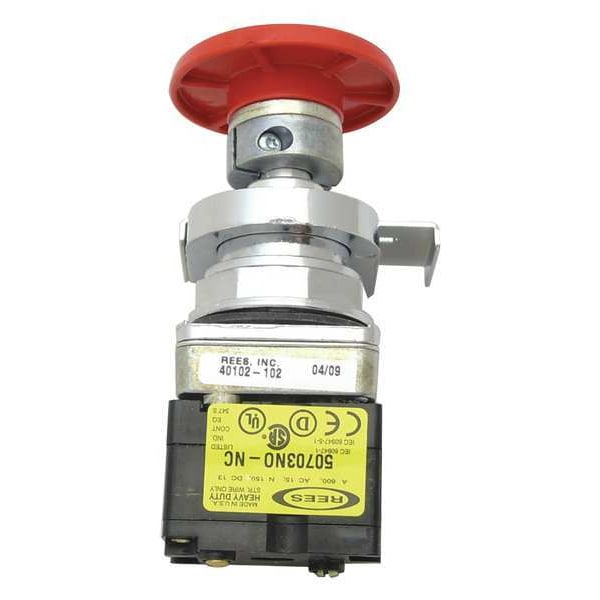

Emergency Stop Push Button, 30 mm, 1NO/1NC, Red

  • Mfr # 40102-102

  • Zoro # G9999403

product price:  $271.99
/ea
Free Shipping & Returns

Key Features

Push Button Style
Mushroom Head
Action
Maintained
Maintained Action Release
Push/Pull
Operator Illumination
Non-Illuminated
Panel Cutout Diameter
30 mm
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
40102-102
Zoro #
G9999403
UPC #
-
Country of Origin
Mexico

Dimensions

Panel Cutout Diameter
30 mm
Mushroom Head Diameter
50.8 mm
Size
30 mm
Overall Height
4.4 in
Manufacturer Warranty Length
1 yr

Details

Item
Emergency Stop Push Button
Push Button Style
Mushroom Head
Action
Maintained
Maintained Action Release
Push/Pull
Operator Illumination
Non-Illuminated
Head Color
Red
Head Material
Plastic
Terminal Connection
Screw Clamp
Standards
ANSI B11.1, IEC 60947-5-5-3.9, OSHA, UL/NISD E357870
Contact Form
1NO/1NC
Basic Material
Metal
Material
metal
Number of Operators
1
Type of Operator
31mm Mushroom Head
IP Rating
IP65
Contact Rating
10A @ 600V AC
NEMA Rating
12, 13
Color
Red
Bezel
Die Cast Zinc
Bezel Material
Zinc Die Cast
Features
Gold Plated Contacts, Positive Break, Sliding Padlock Attachment
DC Contact Rating
2.2 A @ 125V
AC Contact Rating
10 A @ 600 V
Product Type
Emergency Stop Push Buttons
Resistance Properties
Impact Resistant, Oil and Grease Resistant
Operating Temperature - Minimum
32 Degrees F
Number of Indicator Lights
0
NEMA Enclosure Rating
12, 13
Operator Material
Plastic
Mechanical Operating Durability
1.00 x 10^6
Operating Temperature - Maximum
131 Degrees F
Operator Voltage Rating - Maximum
600 V AC

Description

Emergency Stop Push Button, 30 mm, Maintained Action, 31mm Mushroom Head Type of Operator, Head Material Plastic, Contact Form 1NO/1NC, Bezel Die Cast Zinc, Color Red, Contact Rating 10A @ 600V AC, Number of Operators 1, NEMA Rating 12, 13, IP Rating IP65, Legend Not Applicable, Standards ANSI B11.1, IEC 60947-5-5-3.9, OSHA, UL/NISD E357870, Terminal Connection Screw Clamp, Features Gold Plated Contacts, Positive Break, Sliding Padlock Attachment, Material Metal
