RG-400 Coax Cbl Assmbly w/SMA (Male RA) to SMA (Male RA) Cnnctrs, 50 Ohm Impedance, 2FT Lngth
Mfr # R-CX-1002-24
Zoro # G201908201
product price:
$
183.99
/ea
Free Shipping & Returns
Key Features
Impedance
50 Ω
Mating Cycles
100
Contact Material
Gold-plated beryllium copper
Operating Frequency
12.4 GHz Maximum
Connector A Type
SubMiniature version A (SMA)
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- R-CX-1002-24
- Zoro #
- G201908201
- UPC #
- -
- Country of Origin
- United States
Dimensions
- Bend Radius
- 1.0"
- Overall Diameter
- 0.195"
Details
- Impedance
- 50 Ω
- Mating Cycles
- 100
- Contact Material
- Gold-plated beryllium copper
- Operating Frequency
- 12.4 GHz Maximum
- Connector A Type
- SubMiniature version A (SMA)
- Connector B Type
- SubMiniature version A (SMA) Gender
- Voltage Rating
- 500 V Maximum
- Jacket
- Tan FEP, Type IX per MIL-C-17
- Temperature Rating
- -55°C (-67°F) to 165°C (329°F)
- Body Material
- Passivated stainless steel
- Cable Type
- RG-400/U Coaxial
- Gender
- Male (Plug)
- Style
- Right angle (90°)
Description

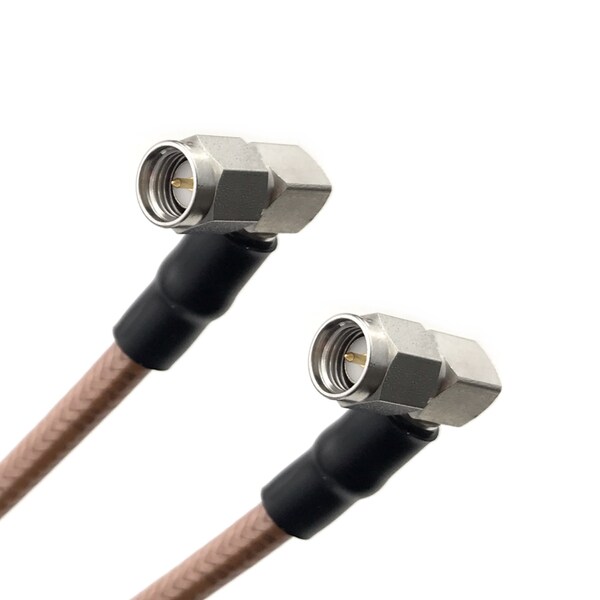

This RG-400, SMA (Male Right Angle) to SMA (Male Right Angle) coax cable assembly by Remington Industries is built for high frequency, 50 Ω impedance signal transmission applications requiring high temperature resistance and excellent shielding. However, its overall superb characteristics make it ideal for many military & civil radio frequency (RF) operations including telecommunications, WiFi/network antennas, microwave systems, and ham/CB/other radio setups, as well as any other signal transfer applications in fields such as aerospace, scientific, and medical. Attached to each end of the assembly is a male SMA right-angle style plug with a passivated stainless steel body and a gold-plated contact. The coaxial cable in between is RG-400 type, which boasts a double shield for minimal interference and a tan FEP jacket for additional physical protection.
