  13. Plate Clamp, Steel, 2 ton
Shop All Beam & Plate Clamps
Renfroe

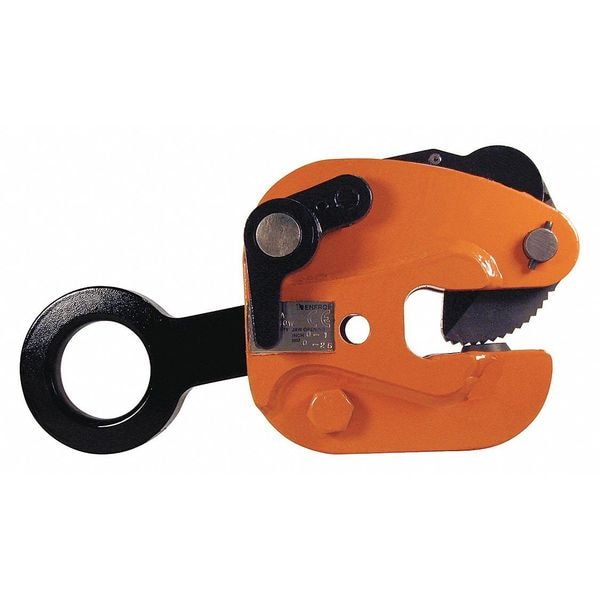

Plate Clamp, Steel, 2 ton

product price: $850.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Operation Vertical Lift with 180 Degrees Flip
  • Material Steel
  • Safe Working Load 4,000 lb
  • Jaw Capacity 0 in to 1 in
  • Overall Width 3 5/8 in
See all product information

Product Information

Dimensions

Overall Width 3 5/8 in
Overall Height 12 1/2 in
Overall Depth 7 1/8 in
Attachment Diameter 1 7/8 in

Details

Item Plate Clamp
Operation Vertical Lift with 180 Degrees Flip
Material Steel
Safe Working Load 4,000 lb
Jaw Capacity 0 in to 1 in
Lifting Point Shackle Eye
Locking Type Load Activated
Jaw Material Steel
Standards ASME BTH-1
Maximum Jaw Opening 1 in
Attachment Type Load Ring
Grip Type Teeth
Close Type Manual with Lock
Open Type Manual
Maximum Material Thickness 1 in
Clamp Type Plate Clamp
Minimum Material Thickness 0 in
Minimum Jaw Opening 0 in
Working Load Limit 4,000 lb

Description

Plate Clamp, Working Load Limit 4,000 lb, Attachment Type Load Ring, Open Type Manual, Close Type Manual with Lock, Minimum Material Thickness 0 in, Maximum Material Thickness 1 in, Minimum Jaw Opening 0 in, Maximum Jaw Opening 1 in, Material Steel, Clamp Type Plate Clamp, Operation Vertical Lift with 180 Degrees Flip, Attachment Diameter 1 7/8 in, Grip Type Teeth, Overall Height 12 1/2 in, Overall Width 3 5/8 in, Overall Depth 7 1/8 in, Standards ASME BTH-1
