Shop RESIDEO

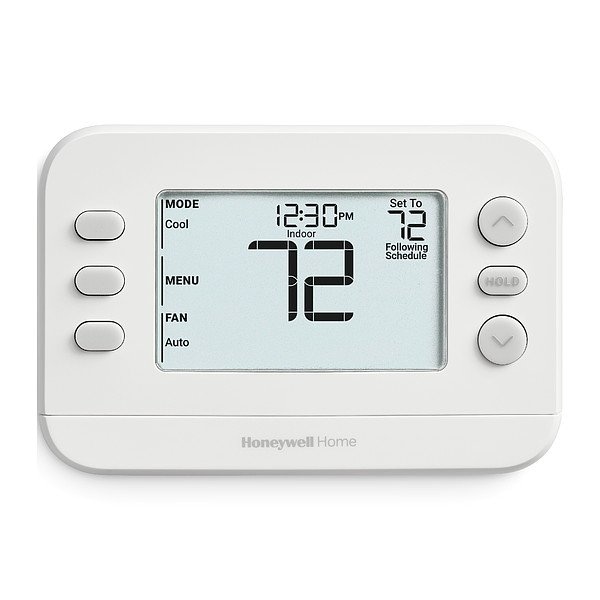

Thermostat

  • Mfr # TH2210U4005/U

  • Zoro # G722785411

product price:
$
48.29
/ea

Key Features

Overall Width
5 1/8 in
Minimum Control Temperature
32 Degrees F
Number of Heating Stages - Heat Pump System
2
Overall Depth
1 3/16 in
Application
Heat and Cool
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
TH2210U4005/U
Zoro #
G722785411
UPC #
194159018563
Country of Origin
Mexico

Dimensions

Overall Width
5 1/8 in
Overall Depth
1 3/16 in
Overall Height
3 7/16 in

Details

Minimum Control Temperature
32 Degrees F
Number of Heating Stages - Heat Pump System
2
Application
Heat and Cool
Backlit Screen
Yes
Operating Humidity Range
5% to 90% RH
Dehumidification Control
No
Battery Type
AA Alkaline
Control Type
Push Button
Maximum Control Temperature
99 Degrees F
Temperature Scale
Fahrenheit/Celsius
Changeover Type
Automatic and Manual
Display Type
Digital
Temperature Control Range
32 Degrees to 90 Degrees F (Heat), 50 Degrees to 99 Degrees F (Cool)
Product Type
Programmable Thermostat
Backlit Type
Always On
Maximum Operating Humidity
90 %
Item
Low Voltage Programmable Thermostat
Electrical Connection Type
Hardwired
Includes Positive Off
Yes
Temperature Sensitivity
1 Degrees F
Number of Cooling Stages - Heat Pump System
1
Shape
Rectangle
Voltage
24V AC
Mounting Direction
Horizontal
Minimum Operating Temperature
32 Degrees F
Housing Color
White
Filter Change Reminder
Yes
Frequency
60 Hz
Fan Settings
Auto, Cool, Emergency Heat, Heat, Off
Thermostat Type
Digital, Programmable
Humidification Control
No
Maximum Operating Temperature
120 Degrees F
Compatible System Type
24V AC Systems, Hot Water Radiant or Steam Systems, Up to 1H/1C Conventional Systems, Up to 2H/1C Heat Pumps with Aux Heat (Default)
Number of Heating Stages - Conventional System
1
Includes
Decorative Cover Plate with J-Box Adapter, Mounting Hardware, Thermostat, UWP Mounting Plate
Number of Cooling Stages - Conventional System
1
Programming Capability
5-1-1, 5-2, 7-Day
Minimum Operating Humidity
5 %
System Settings
Auto-Heat-Cool-Off, Emergency Heat
Operating Temperature Range
32 Degrees to 120 Degrees F

Description

Low Voltage Programmable Thermostat, Display Type Digital, Key Pad Lockout Not Applicable, Humidification Control No, Dehumidification Control No, Voltage 24V AC, Mounting Location Wall, Includes Decorative Cover Plate with J-Box Adapter, Mounting Hardware, Thermostat, UWP Mounting Plate
