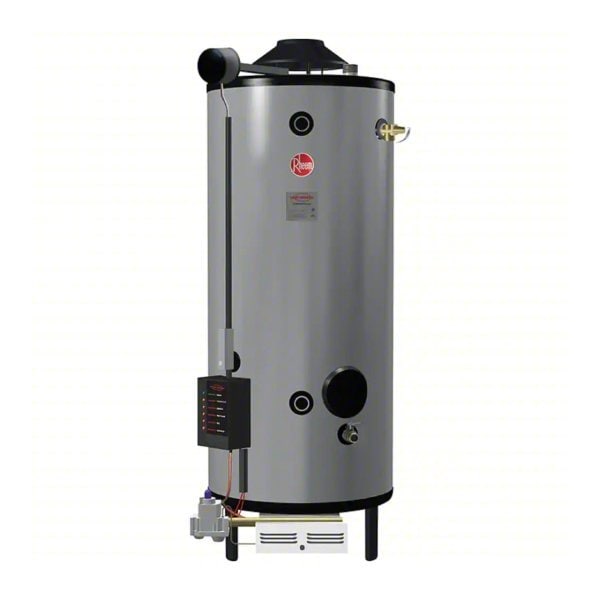

Commercial Gas Water Heater

Mfr # G76-200-1
Zoro # G613355655

$6,292.00

Additional $155.00 delivery surcharge applies per item.

Key Features

Tank Capacity

76 gal

Fuel Type

Natural Gas

Vent Type

Standard

Ignition Type

Direct Spark to Pilot

Features

Altitude Certifications, Anode Rods, Full-port, Full-flow Drain Valve, Innovative Technology, Low Profile Automatic Flue Damper, Space Saver Design, Stainless Steel Burners, SystemSentinel(TM) LED Diagnostic System

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: G76-200-1
Zoro #: G613355655
UPC #: 020352396996
Country of Origin: United States

Dimensions

Tank Diameter: 26.25 in
Overall Height: 68.81 in
Tank Height: 64 in
Height to T and P Valve: 58.63 in
Height to Hot Outlet: 58.63 in
Gas Inlet Size: 3/4 in
Hot Outlet Size: 1 1/2 in
Manufacturer Warranty Length: 3 yr
Height to Gas Inlet: 7 in
Height to Cold Inlet: 25 in
Cold Inlet Size: 1 1/2 in

Details

Tank Capacity: 76 gal
Fuel Type: Natural Gas
Vent Type: Standard
Item: Commercial Gas Water Heater
Ignition Type: Direct Spark to Pilot
Features: Altitude Certifications, Anode Rods, Full-port, Full-flow Drain Valve, Innovative Technology, Low Profile Automatic Flue Damper, Space Saver Design, Stainless Steel Burners, SystemSentinel(TM) LED Diagnostic System
Standards: AHRI Certified, Canada CSA, LWH, UL Classified, US CSA (Star)
First Hour Rating: 247 gal
Operating Voltage: 120/24V
Maximum Recovery Flow Rate: 485 gph @ 40 Degrees F
Thermal Efficiency: 80 %
Tank Insulation Material: Fiberglass
Tank Outer Shell Material: Steel
Maximum Heating Capacity: 199,900 BtuH
Maximum Altitude: 5,000 ft
Maximum Delivered Temperature: 180 Degrees F
Market: Commercial
Water Connection Location: Front, Rear, Top
Recovery Rate @ Rise: 138 gph @ 140 Degrees F, 149 gph @ 130 Degrees F, 162 gph @ 120 Degrees F, 176 gph @ 110 Degrees F, 194 gph @ 100 Degrees F, 215 gph @ 90 Degrees F, 242 gph @ 80 Degrees F, 277 gph @ 70 Degrees F, 323 gph @ 60 Degrees F, 388 gph @ 50 Degrees F
Maximum Water Pressure: 150 psi
Included Valves: Drain, Temperature and Pressure Relief
Low NOx: No
Product Type: Gas Tank Water Heater
Series: Unviversal
Hot Outlet Type: NPT
Cold Inlet Type: NPT
Condensing: No

Description

Commercial Gas Water Heater, Fuel Type Natural Gas, Low NOx No, First Hour Rating 247 gal, Gas Inlet Size 3/4 in, Maximum Heating Capacity 199,900 BtuH, Overall Height 68.81 in, Tank Diameter 26.25 in, Included Valves Drain, Temperature and Pressure Relief, Tank Capacity 76 gal, Hot Outlet Size 1 1/2 in, Maximum Recovery Flow Rate 485 gph @ 40 Degrees F, Market Commercial, Vent Type Standard, Cold Inlet Size 1 1/2 in, Condensing No, Energy Factor Not Applicable
