120 Gal. Commercial Electric Water Heater, Single/Three Phase, 67.6 in. H
Mfr # ES120-36-G
Zoro # G1039525
product price: $8,158.99
/ea
Item requires special delivery charges. A $180.00 per item surcharge will be applied.
Key Features
Commercial / Residential
Commercial
Water Heater Design
Whole House
Tank Capacity
120 gal
Phase
Single, Three
Total Watts
36,000 W
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
ES120-36-G
Zoro #
G1039525
UPC #
203524724166
Country of Origin
United States
Dimensions
Overall Height
67.6 in
Jacket Dia.
30 1/4 in
Manufacturers Warranty Length
3 yr Limited Tank, 1 yr Limited Parts
Height to Cold Side Connection
4 3/4 in
Height to Hot Side Connection
67 5/8 in
Overall Width
30.3 in
Connection Size
3/4"
Height to Top of Vent Connection
67.63"
Height to Top of Heater
67.63"
Height to T and P Opening
58-3/4"
Overall Height - Water Heaters
67 5/8 in
Height to T and P Valve
58.75 in
Hot Outlet Size
1 1/2 in
Height to Hot Outlet
67.6 in
Cold Inlet Size
1 1/2 in
Manufacturer Warranty Length
1 yr Limited Parts, 3 yr Limited Tank
Height to Cold Inlet
4.8 in
Tank Diameter
30.25 in
Overall Depth
36 in
Description

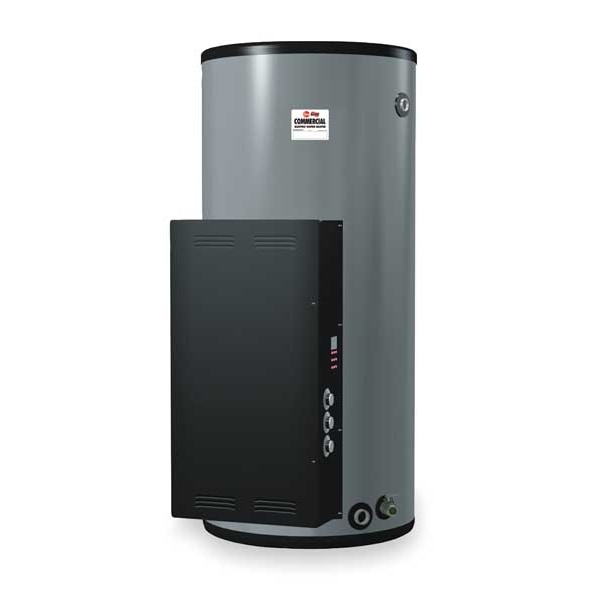

Rheem Ruud ES120-36-G Electric Water Heater
The Rheem Ruud ES120-36-G is a commercial-grade electric water heater designed for high-demand applications. It features a 120-gallon vitreous glass-lined steel tank with heavy-duty insulation and six stainless steel heating elements delivering 36,000 watts at 480V AC (single or three-phase). This unit offers efficient, rapid water heating suitable for whole-house or commercial use.
Key Features:
- 120-gallon vitreous glass-lined steel tank with porcelain enamel finish
- Six stainless steel heating elements providing 36,000 watts at 480V AC
- Compatible with single or three-phase power supply
- Heavy-duty polyurethane insulation for 98% thermal efficiency and minimized standby heat loss
- Maximum recovery flow rate of 298 gallons per hour at a 50°F rise
- Operating temperature range: 120°F to 180°F; maximum delivery temperature of 181°F
- Maximum operating pressure of 150 psi
- Factory-installed temperature and pressure relief valves and brass drain valve
- Automatic thermostat for precise temperature control
- Dimensions: 67.6" height x 30.25" diameter x 36" depth
- 1 1/2-inch NPT cold inlet and hot outlet connections (cold inlet located 4.8" from base)
- Certified to AHRI, CSA, UL, and ASHRAE standards This water heater is engineered to provide reliable, energy-efficient hot water for commercial and whole-house applications.
