Portable Pipe Threading Machine, Series 300, 1/8 in to 2 in Pipe, 1/4 in to 2 in Rod, 38 RPM
Mfr # 15682
Zoro # G2301117
product price:Â
$
6,179.99
/ea
Additional $110.00 delivery surcharge applies per item.
Key Features
Overall Length
19 in
Minimum Compatible Pipe Size
1/8 in
Maximum Compatible Pipe Size
2 in
Voltage
120 V
Includes
1 gal Premium Thread Cutting Oil, Oiler, Clip-On Tool Tray, Stand, Reamer, Full Floating Self Centering Cutter, Transporter, Carriage with Lever, Quick-Open Right Hand NPT Die Head
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 15682
- Zoro #
- G2301117
- UPC #
- 095691156822
- Country of Origin
- Korea, Republic of
Dimensions
- Overall Length
- 19 in
- Minimum Compatible Pipe Size
- 1/8 in
- Maximum Compatible Pipe Size
- 2 in
- Rod Size
- 1/4 in to 2 in
- Bolt Size
- 1/4 in to 2 in
- Overall Width
- 15.5 in
- Maximum Bolt Size
- 2 in
- Minimum Bolt Size
- 1/4 in
- Die Head Sizes
- 1/2 in to 2 in
- Dedupe to Minimum Compatible Pipe Size and Maximum Compatible Pipe Size
- 1/8 in to 2 in
- Wire Rope Length
- 19 in
- Length
- 19 in
Description

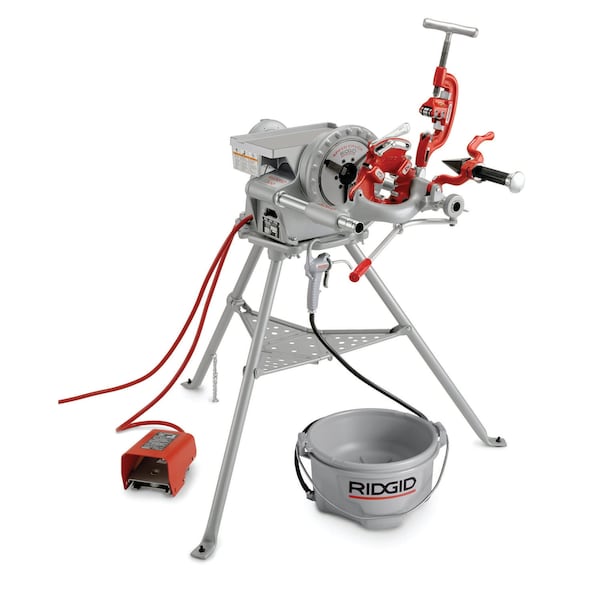

The RIDGID 15682 Model 300 Complete Power Threading Machine & Oiler Set is a portable, corded pipe threading and cutting machine for threading pipe, rod, and bolts. It handles pipe from 1/8 in to 2 in and rod or bolt sizes from 1/4 in to 2 in, making it suitable for general pipe and threaded rod preparation. This model runs at 38 RPM and includes a stand, oiler, reamer, cutter, carriage with lever, and a quick-open right hand NPT die head for threading operations.
Key Features:
- Threading capacity: Works with 1/8 in to 2 in pipe and 1/4 in to 2 in rod and bolt sizes.
- Quick-open die head: Includes one 1/2 in to 2 in die head with a quick opening mechanism for faster die access and setup changes.
- Manual chuck with rear centering device: Uses a manual chuck and a cam-action rear centering device that turns with the chuck to help support and align the workpiece.
- Through-the-head oiling: Delivers cutting oil through the die head during threading; includes a hand-pump oiler and 1 gal of premium thread cutting oil.
- Motor and power: 1/2 hp standard motor, 120 V, 15 A, 60 Hz, single-phase, with a three-prong plug.
- Controls: Forward/Off/Reverse switch with an integral foot switch and reversible operation.
- Included components: Comes with a stand, clip-on tool tray, transporter, reamer, full floating self-centering cutter, carriage with lever, oiler, and quick-open right hand NPT die head.
- Machine size: Measures 19 in L x 15.5 in W and weighs 212 lb.
- Listings: NRTLC and UL Listed.
