  9. Axial Fan, Square, 115V AC, 1 Phase, PBT Plastic, 4 5/8 in W.

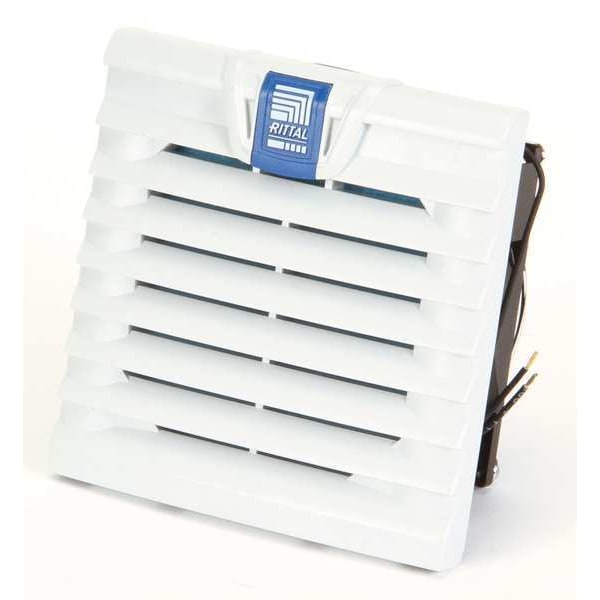

Rittal Axial Fan, Square, 115V AC, 1 Phase, PBT Plastic, 4 5/8 in W. 3237110 - main

Axial Fan, Square, 115V AC, 1 Phase, PBT Plastic, 4 5/8 in W.

  • Mfr # 3237110

  • Zoro # G4060104

product price: $161.99
/ea
Free Shipping & Returns

Key Features

Blade Material
Steel
CFM @ 0.000-In. SP
81 cfm
Depth
2 5/16 in
Height
4 5/8 in
Housing Material
PBT Plastic
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
3237110
Zoro #
G4060104
UPC #
639889858237
Country of Origin
China

Dimensions

Depth
2 5/16 in
Height
4 5/8 in
Width
4 5/8 in
Fan Height
4-19/32"
Fan Width
4-19/32"
Fan Width
4-19/32"
Fan Depth
2-19/64"

Details

Blade Material
Steel
CFM @ 0.000-In. SP
81 cfm
Housing Material
PBT Plastic
Phase
1
Shape
Square
Watts
11/9 W
Voltage
115V AC
Amps
0.12/0.1 A
Fan Item
Axial Fan
Electrical Connection - Fans
Terminals
Motor Type
Self Starting Shaded Pole
Fan dBA
38/43
Fan Watts
9.0/11.0
Mounting Eye O.C.
3 5/8 in
Electrical Connections
Terminals
Mounting Position
Vertical or Horizontal
Bearings
Ball
Item
Axial Fan
Max. Ambient Temp.
131 Degrees F
Mounting Eye O.C. - Fans
3-5/8"
Motor Insulation
Class B
Requires
Hard Wiring
Fan Voltage
115VAC
Thermal Protection
Impedance
Standards
UL and CUL Recognized, CE, Type 12 Rated, IP 54 (Standard), NEMA 12, CURus, UR, CSA, CCC
dBA
38/43
Hz
50/60 Hz
Housing Finish
Light Gray (RAL 7035)
Fan Shape
Square
IP Rating
IP54
Bearing Type
Ball
Environmental Applications
Equipment Cooling
Fan Mounting Location
Enclosure

Description

Axial Fan, Fan Shape Square, Mounting Eye O.C. 3 5/8 in, Height 4 5/8 in, Depth 2 5/16 in, Width 4 5/8 in, CFM @ 0.000-In. SP 81 cfm, Watts 11/9 W, Voltage 115V AC, 60/50 Hz Hz, 0.12/0.1 A Amps, Electrical Connection - Fans Terminals, IP Rating IP54, Fan Mounting Location Enclosure, Mounting Position Horizontal/Vertical, Bearing Type Ball, Motor Insulation B, Thermal Protection Yes, Max. Ambient Temp. 131 Degrees F, Blade Material Steel, Housing Material Polybutylene Terephthalate
