  11. Digital Wall Thermostat, White, 1" D

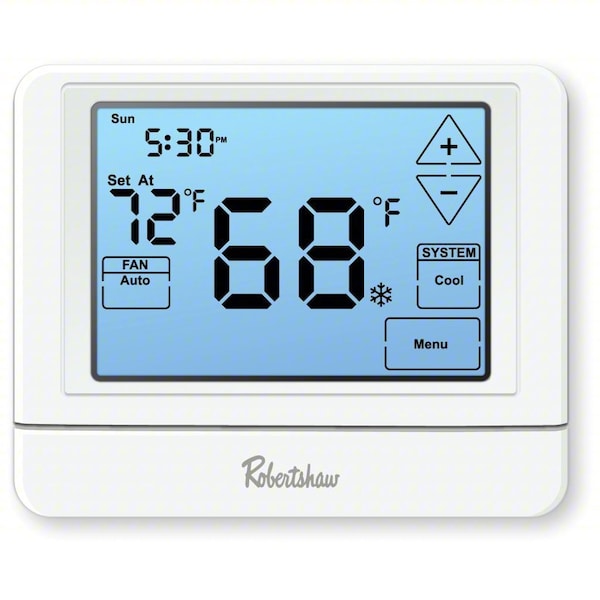

Robertshaw Digital Wall Thermostat, White, 1" D RS9320T - main

Digital Wall Thermostat, White, 1" D

  • Mfr # RS9320T

  • Zoro # G301701856

product price: $108.99
/ea
Free Shipping & Returns

Key Features

Voltage
18 to 30V AC
Dual Transformer Compatible
Yes
Temporary Temperature Hold
Yes
Battery Backup
Yes
Includes
Batteries
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
RS9320T
Zoro #
G301701856
UPC #
-
Country of Origin
China

Dimensions

Overall Width
4 11/16 in
Overall Height
3 13/16 in
Screen Width
8 3/4 in
Screen Height
8 3/4 in
Overall Depth
1 in
Digit Size
Large/Easy Read

Details

Item
Digital Wall Thermostat
Voltage
18 to 30V AC
Dual Transformer Compatible
Yes
Temporary Temperature Hold
Yes
Battery Backup
Yes
Includes
Batteries
Temperature Limiting
Yes
Terminal Designations
B, C, G, O, RC, RH, W/E, Y, Y2
Low Battery Indicator
Yes
Dehumidification Control
No
Temporary Program Override
Yes
Stages
3H/2C
Standards
ISO-9001 Certified
Display Type
Digital
Humidification Control
No
Key Pad Lockout
Yes
Control Type
Touch Screen
Application
Heat or Cool
Smart Connectivity
No Connectivity
Sensor Location
Built-In
Backlit Screen Color
Blue
Number of Zones
1
Differential Type
Adjustable
Number of Heating Stages - Heat Pump System
3
Requires C-Wire
No
Electrical Connection Type
Hardwired/Battery
Thermostat Type
Low Voltage
Differential Heat
0.2 Degrees F, 2 Degrees F
Operating Temperature Range
32 Degrees to 99 Degrees F
Includes Positive Off
Yes
Includes Batteries
Yes
Maximum Operating Temperature
99 Degrees F
Temperature settings per day
4
Frequency
5/6 Hz
Differential Cool
0.2 Degrees F, 2 Degrees F
Temperature Control Range
41 Degrees to 90 Degrees F
Mounting Direction
Horizonal
Temperature Sensitivity
+/-1.0 Degrees F
Application/Stages
Heat and Cool/5
Number of Heating Stages - Conventional System
3
Maximum Operating Humidity
90 %
Backlit Screen
Yes
Changeover Type
Automatic
Temperature Differential
+/-0.2 to 2.0 Degrees F
Housing Color
White
Millivolt Compatible
Yes
Wireless System Compatibility
No
Shape
Square
Temperature Readout
Yes
Number of Cooling Stages - Heat Pump System
2
Backlit Type
5 Seconds
Filter Change Reminder
Yes
Maximum Control Temperature
90 Degrees F
Compatible System Type
Heat Pump with or without Aux
System Settings
Auto-Heat-Cool-Off
Fan Settings
Auto-On
Minimum Operating Temperature
32 Degrees F
Wireless
Yes
Battery Type
(2) AAA Batteries
Number of Cooling Stages - Conventional System
2
Temperature Scale
Fahrenheit/Celsius
Programming Capability
5-1-1, 7-Day, Not Programmable
Minimum Control Temperature
41 Degrees F

Description

Digital Wall Thermostat, Terminal Designations B, C, G, O, RC, RH, W/E, Y, Y2, Display Type Digital, Key Pad Lockout Yes, Humidification Control No, Dehumidification Control No, Temporary Program Override Yes, Temporary Temperature Hold Yes, Temperature Limiting Yes, Battery Backup Yes, Low Battery Indicator Yes, Dual Transformer Compatible Yes, Voltage 18 to 30V AC, Mounting Type Surface Mount, Mounting Location Junction Box, Wall, Includes Batteries
