Shop ROTHENBERGER

Pipe Threading and Cutting Machines, 1/2 in to 4 in, Rod: No Rod Bolt: 3/8 in to 2 in

  • Mfr # 63006

  • Zoro # G1788805

product price:
$
10,471.99
/ea
Additional $200.00 delivery surcharge applies per item.
See details

Key Features

Overall Length
31 in
Minimum Compatible Pipe Size
1/2 in
Maximum Compatible Pipe Size
4 in
Voltage
120 V
Includes
Automatic Oil Feed, (2) Automatic Die Heads, Pipe Cutter, Reamer, (4) Legs, (3) Sets of Dies
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
63006
Zoro #
G1788805
UPC #
-
Country of Origin
Thailand

Dimensions

Overall Length
31 in
Minimum Compatible Pipe Size
1/2 in
Maximum Compatible Pipe Size
4 in
Overall Width
21 in
Bolt Size
3/8 in to 2 in
Rod Size
No Rod
Minimum Bolt Size
3/8 in
Die Head Sizes
1/2 in to 2 in, 2 1/2 in to 4 in
Maximum Bolt Size
2 in
Dedupe to Minimum Compatible Pipe Size and Maximum Compatible Pipe Size
1/2 in to 4 in
Wire Rope Length
31 in
Length
31 in

Details

Item
Portable Pipe Threading Machine
Voltage
120 V
Includes
Automatic Oil Feed, (2) Automatic Die Heads, Pipe Cutter, Reamer, (4) Legs, (3) Sets of Dies
Features
Ball Detent Dies, Deburring Blade, Chip Tray
Tool Series
Supertronic 4SE
Phase
Single-Phase
Oil Capacity
0.5 gal
Switch Type
On/Off Toggle with Integral Foot Switch
Standards
CE Certified
Capacity
Pipe 1/2" to 4", Bolt 3/8" to 2"
Through-the-Head Oiling
Yes
Reversible
Yes
Machine Type
Stationary Power Threading Machine
Free Speed
58 RPM
Chuck Type
Manual
Horsepower
1 1/2 hp
Thread Standard of Included Dies
NPT
Number of Die Heads
2
Power Output
1,750 W
Pump Type
Automatic Oil Feed
Number of Speeds
2
Kit Contents
Bare Tool
Frequency
60 Hz
Power Source
Corded
Current
10 A
Motor Type
Standard
Portability
Portable
Tool Weight
315 lb
Threading Equipment Included
(2) Die Heads, (3) Die Sets, Cutter, Reamer
Mount Type
Stand

Description

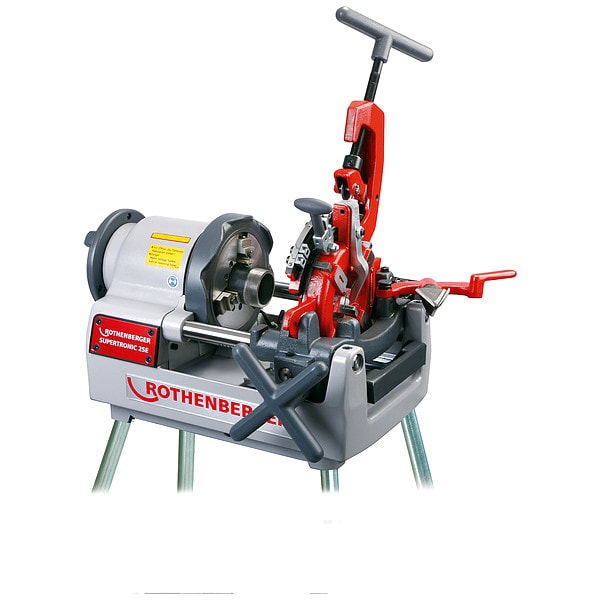

The ROTHENBERGER 63006 is a stationary power pipe threading machine designed for use with the included stand. It operates on a single-phase, 120 V power source with a motor output of 1,750 W (1 1/2 hp) at 60 Hz frequency. It includes automatic oil feed and through-the-head oiling system and features reversible threading capability. It is mounted on a stand.

Key Features:

  • Threading capacity: Pipes 1/2 in to 4 in, Bolts 3/8 in to 2 in
  • includes (2) die heads and (3) die sets for NPT threading
  • Manual chuck type with two speeds and free speed of 58 RPM
  • Equipped with automatic oil feed and through-the-head oiling system
  • includes ball detent dies, deburring blade, and chip tray
  • Controlled via on/off toggle switch with integral foot switch
  • Dimensions: 31 in length, 21 in width, and wire rope length of 31 in
  • Oil capacity of 0.5 gallons and includes cutter and reamer
  • CE certified with a 10 A current draw and standard motor type
