  8. /
  9. HSS Live Center, 4 MT, Standard Point
Shop All Live and Dead Centers
Royal Products

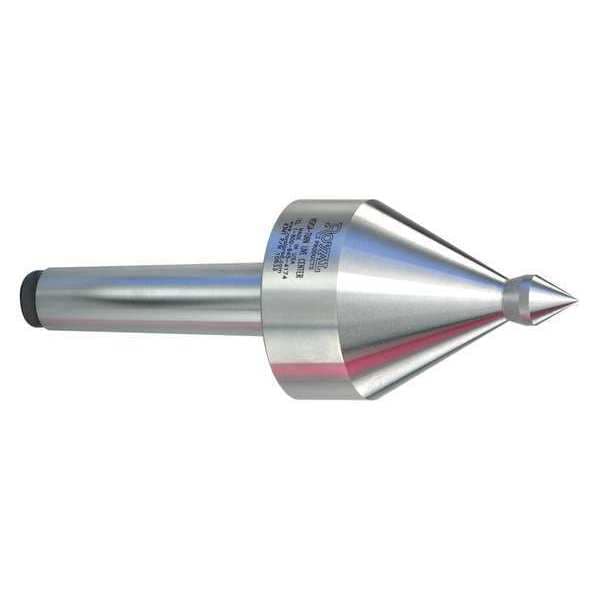

HSS Live Center, 4 MT, Standard Point

product price: $1,023.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Point Type Standard Point
  • Morse Taper 4 MT
  • Weight of Workpiece (Lb.) 1165
  • Head Dia. 3.3800 in
  • Thrust Rating (Lb.) 5700
See all product information

Product Information

Dimensions

Head Dia. 3.3800 in
Point Dia. 3/4 in
Dimension E (In.) 3.15
Dimension F (In.) 1.12
Dimension G (In.) 0.75
Dimension B (In.) 3.38
Head Length 3.1500 in
Point Length 1.1200 in
Shank Taper Size MT4 HD

Details

Item Live Center
Point Type Standard Point
Morse Taper 4 MT
Weight of Workpiece (Lb.) 1165
Thrust Rating (Lb.) 5700
Bearings Tri-Bearing Design
Function Multi-Purpose, Designed to Handle Most Common Turning Jobs
Max. RPM 3500
Accuracy +-0.00005 in
Included Angle (Deg.) 60
Construction Steel
Body Material High Speed Steel
Max. Speed 3,500 RPM
Application Turning
Included Angle 60
Point Style Standard Point
Max. Workpiece Weight 1,165 lb
Bearing Type Tri-Bearing Design
Thrust Load 5,700 lb
Features Extremely Free Turning Great for Thin Parts, Thrust Bearing Provides High Axial Load Ratings for Long Operating Life, Two Precision Radial Ball Bearings give the Versa-Turn High RPM Ratings
Shank Type - Machining Taper

Description

Live Center, Bearing Type Tri-Bearing Design, Point Style Standard Point, Shank Taper Size MT4 HD, Max. Speed 3,500 RPM, Shank Type - Machining Taper, Head Dia. 3.3800 in, Head Length 3.1500 in, Point Dia. 3/4 in, Max. Workpiece Weight 1,165 lb, Accuracy +-0.00005 in, Application Turning
