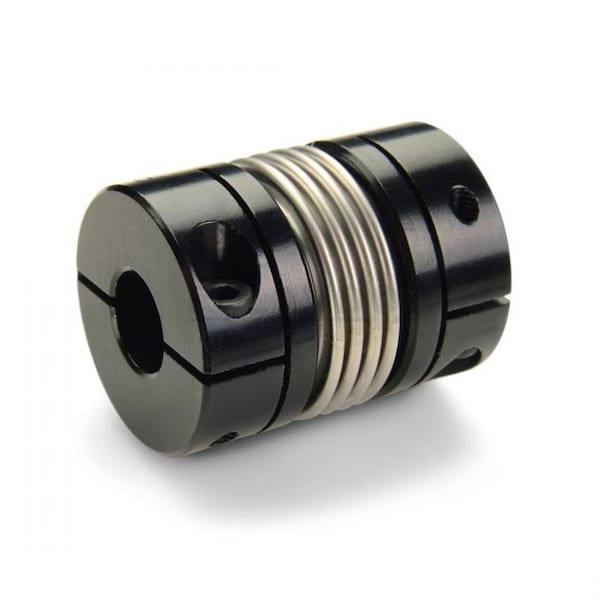

Bellows Coupling
Mfr # MBC80-40-30-A
Zoro # G108677309
product price: $226.99
/ea
Free Shipping & Returns
Key Features
Overall Length
96.9 mm
Dynamic Torque Reversing
38 N-m
Bore Tolerance
+0.03/-0.00 mm
Dynamic Torque Non-Reversing
76 N-m
Moment of Inertia
0.0008082 kgf/m sq
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
MBC80-40-30-A
Zoro #
G108677309
UPC #
-
Country of Origin
United States
Dimensions
Overall Length
96.9 mm
Different Bore Sizes
Yes
Coupling Outside Diameter
79.4 mm
Minimum Bore Diameter
30 mm
Bore Diameter 2
30 mm
Maximum Bore Diameter
40 mm
Bore Diameter 1
40 mm
Clearance Diameter
79.4 mm
Screw Thread Size
M8
Length Through Bore 1
44.5 mm
Hub Length
34.93 mm
Length Through Bore 2
44.5 mm
Screw Length
25 mm
Description
Bellows Coupling, Bore Diameter 1 40 mm, Bore Diameter 2 30 mm, Coupling Outside Diameter 79.4 mm, Maximum Speed 10,000 RPM, Maximum Torque 152 N-m, Hub Material Aluminum, Overall Length 96.9 mm, Shaft Locking Type Clamp On, System of Measurement Metric, Clearance Diameter 79.4 mm, Bellows Material Stainless Steel, Different Bore Sizes Yes, Length Through Bore 1 44.5 mm, Length Through Bore 2 44.5 mm, Parallel Misalignment 0.3 mm, Bore Type Round, Dynamic Torque Non-Reversing 76 N-m
